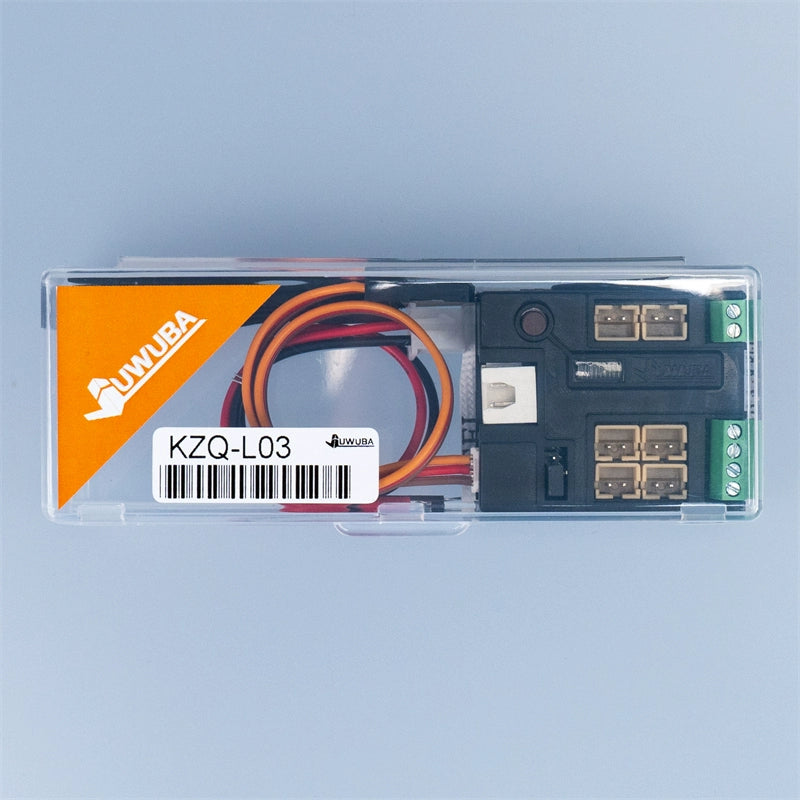

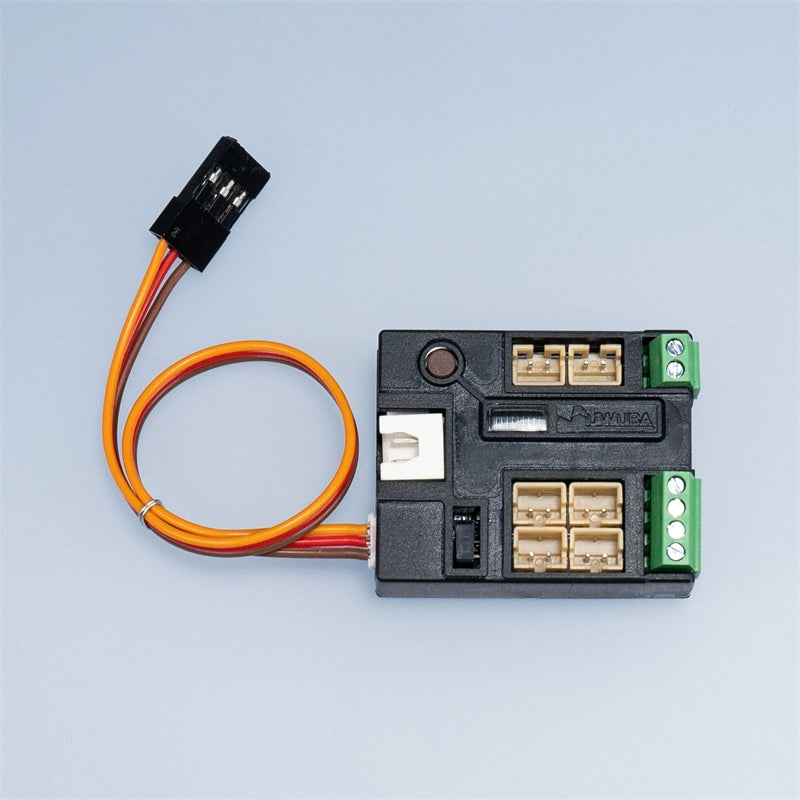

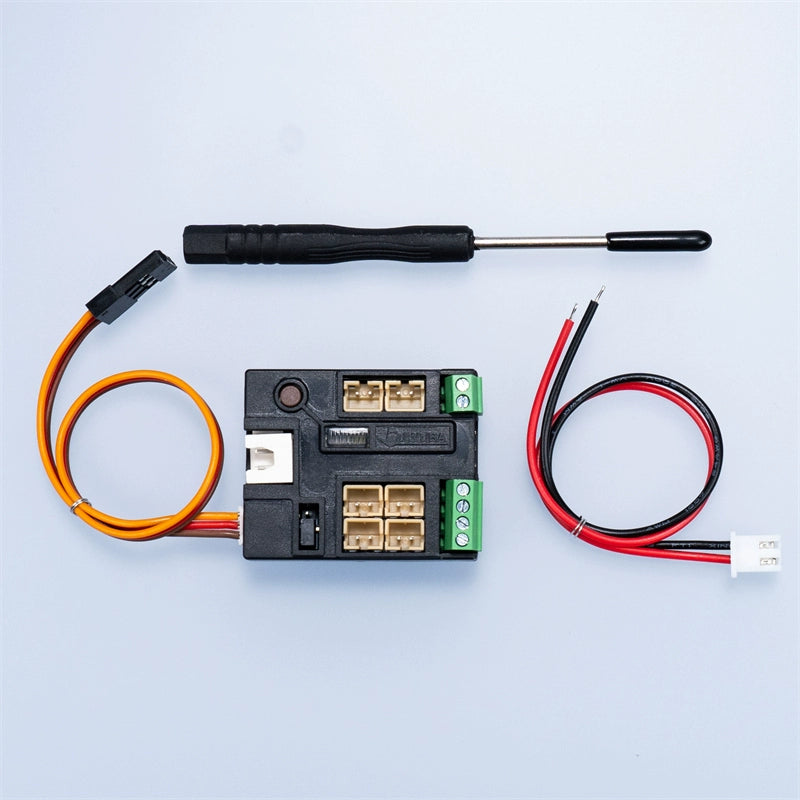

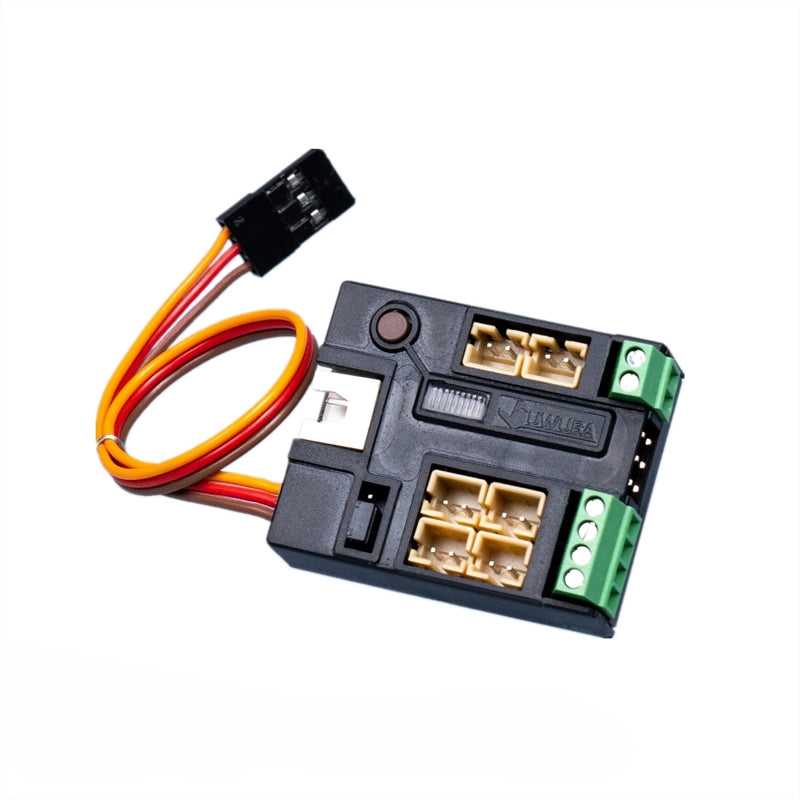

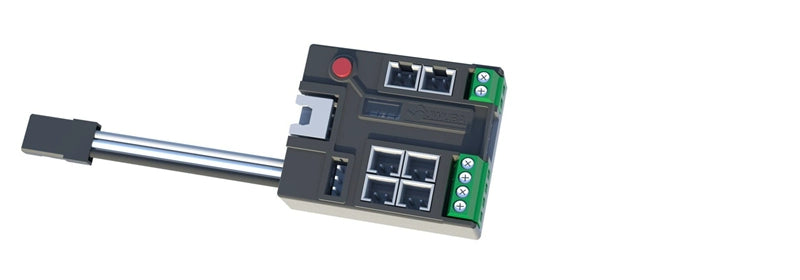

JUWUBA 1/14 Tamiya Rc Tractor Light Driver KZQ-L03

Model flash light group

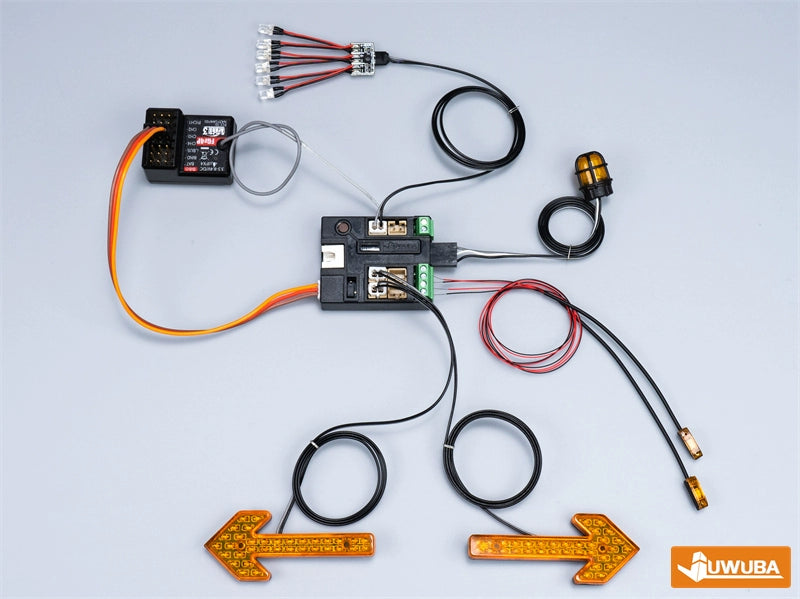

Function: AvailablePlug directly into the receiver three-stage switch channel to control the switch light, and switch the flash mode. It can also be controlled by the button switch that comes with the module.

Model: KZQ-L03

Size: 35x28x13mm

Applicable scenarios: flash light, emergency indicator light

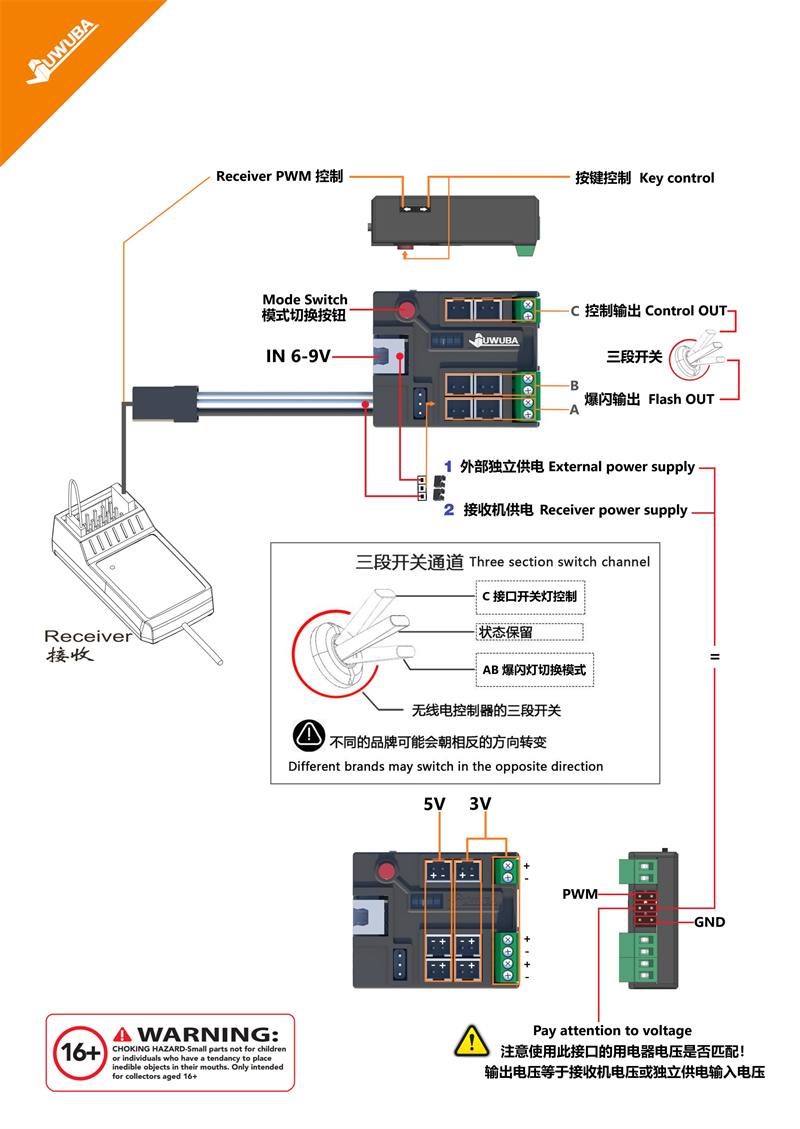

Light control 3V interface: can be directly connected to LED without resistance

5V interface: connect to 5V light bar, light-emitting label

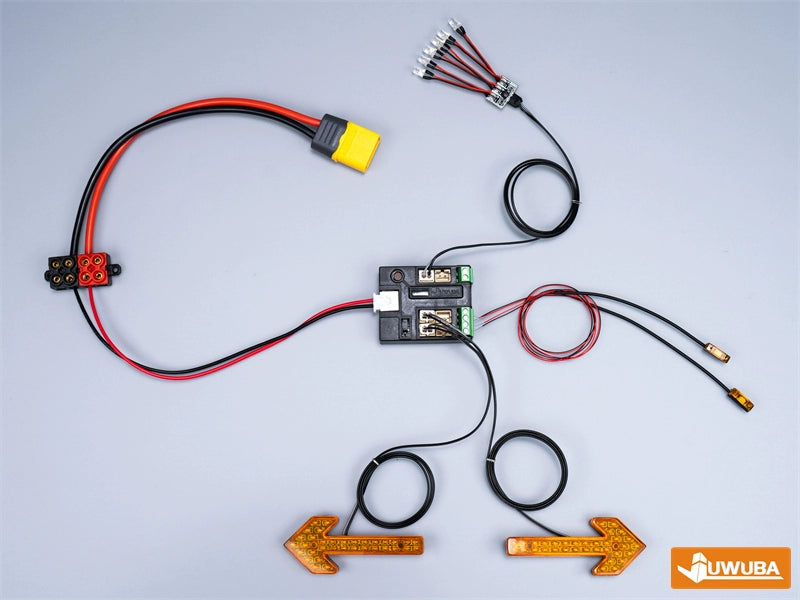

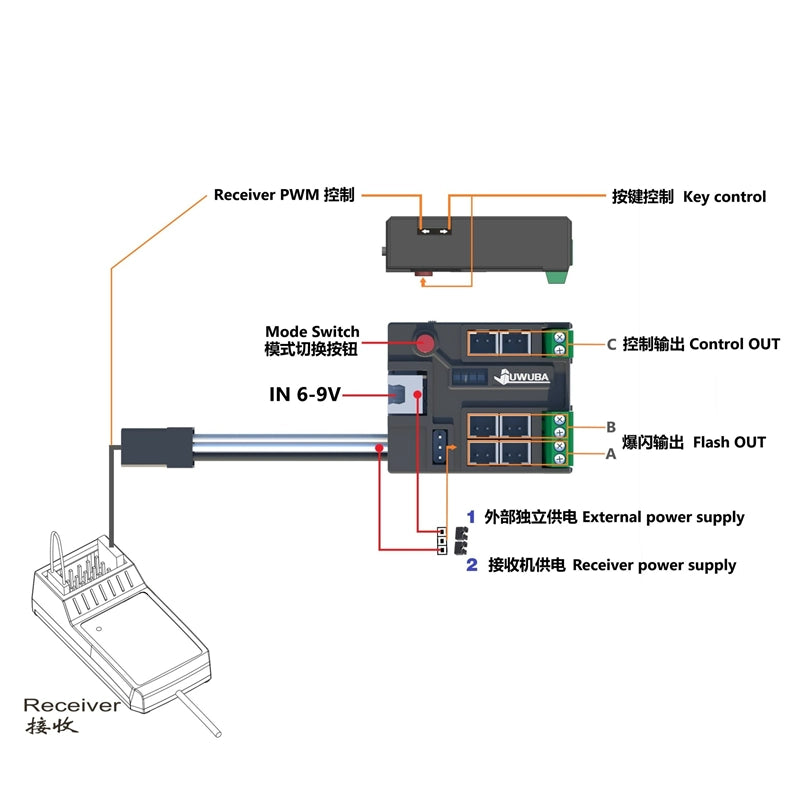

Independent power supply: need to plug and unplug the jumper pin to achieve external power supply, then the receiver power is no longer used.

Attention: This controller interface has two voltages. Please read the instructions carefully.
