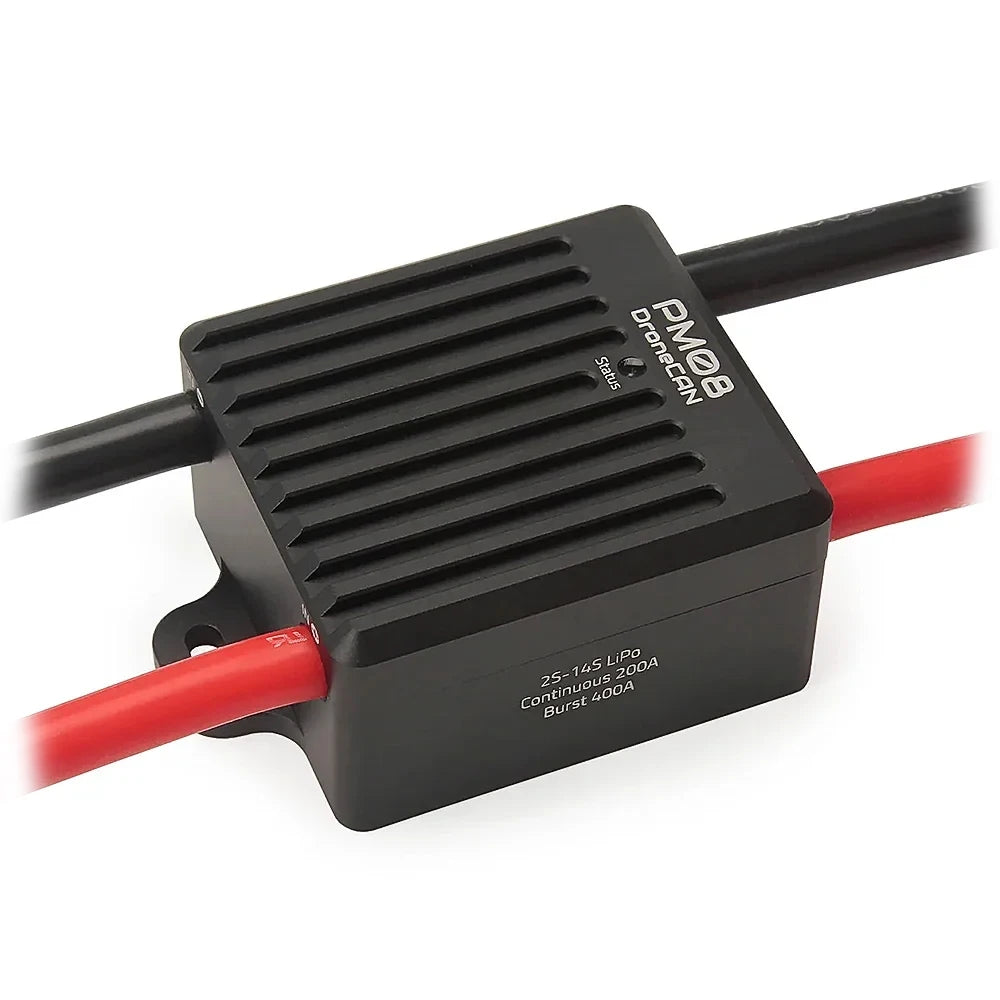

Holybro DroneCAN PM08-CAN Power Module 2-14S 200A Dual Step Down UBEC Output With 2x Independent 5V Out For RC FPV Drone

Feature

• Supports 2-14S & 200A Cont, 400A Burst
• DroneCAN Communication Protocol
• Small & Compact Design
• Two 5V Output with Independent BEC IC and Circuitry
• Separated Sensor and BEC Board to Minimize Electrical Noise Interference

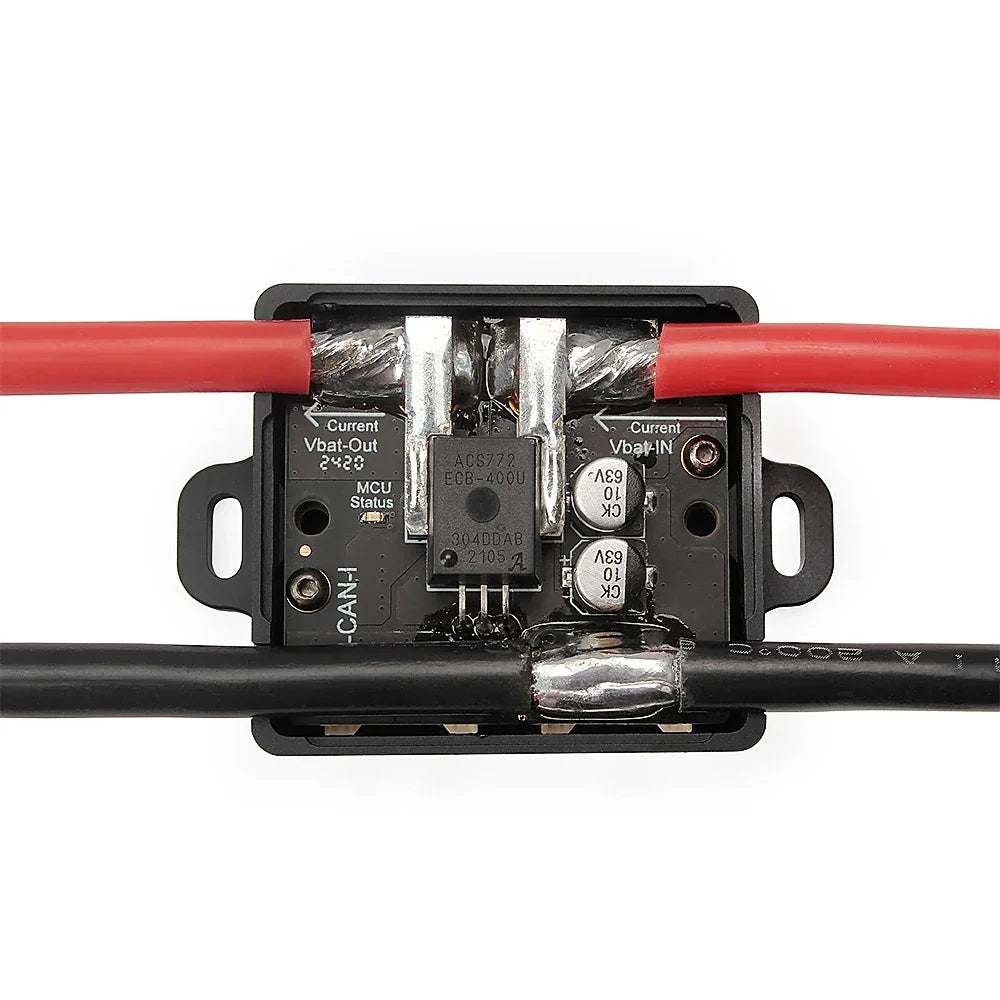

• Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
• High Accuracy Temperature Sensor for Temperature Monitor

• High-Efficiency Aluminum Heat Dissipation Shell

Specifications

• Processor:STM32F405RG 168MHz 1024KB Flash  196KB RAM
• Voltage input: 7~60V (2S~14S)
• Continuous current:200A
• Burst current
  • 400A @ 25℃ 1 sec
  • 1000A @ 25℃ < 1 sec
• Max current sensing: 376A
• Voltage accuracy: ±0.1V
• Current accuracy: ±5%
• Temperature accuracy:±1℃

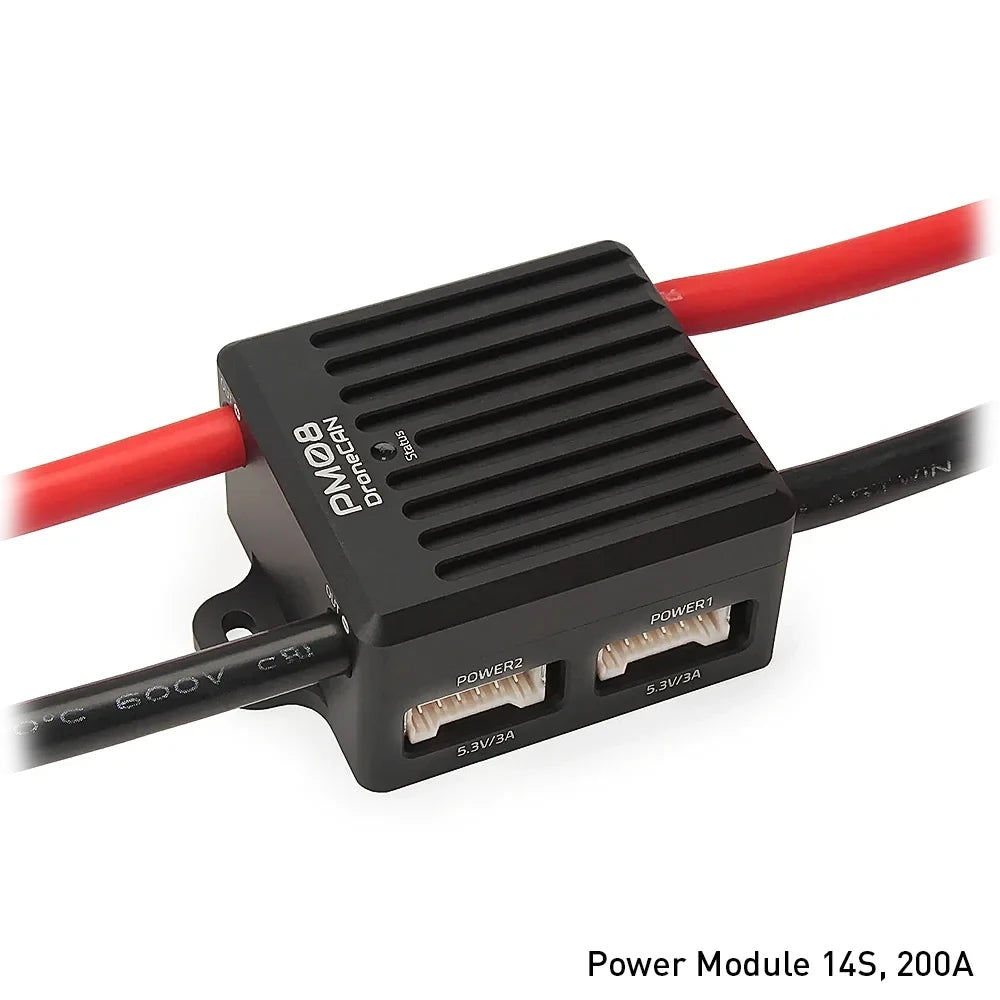

• Power port output: 5.3V/3A each port
• Protocol: DroneCAN
• Operating temperature :-25℃~105℃
• Firmware upgrade: Support
• Calibration:  Support

Pinout

Interface Type

• Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
• Battery IN/OUT Options:

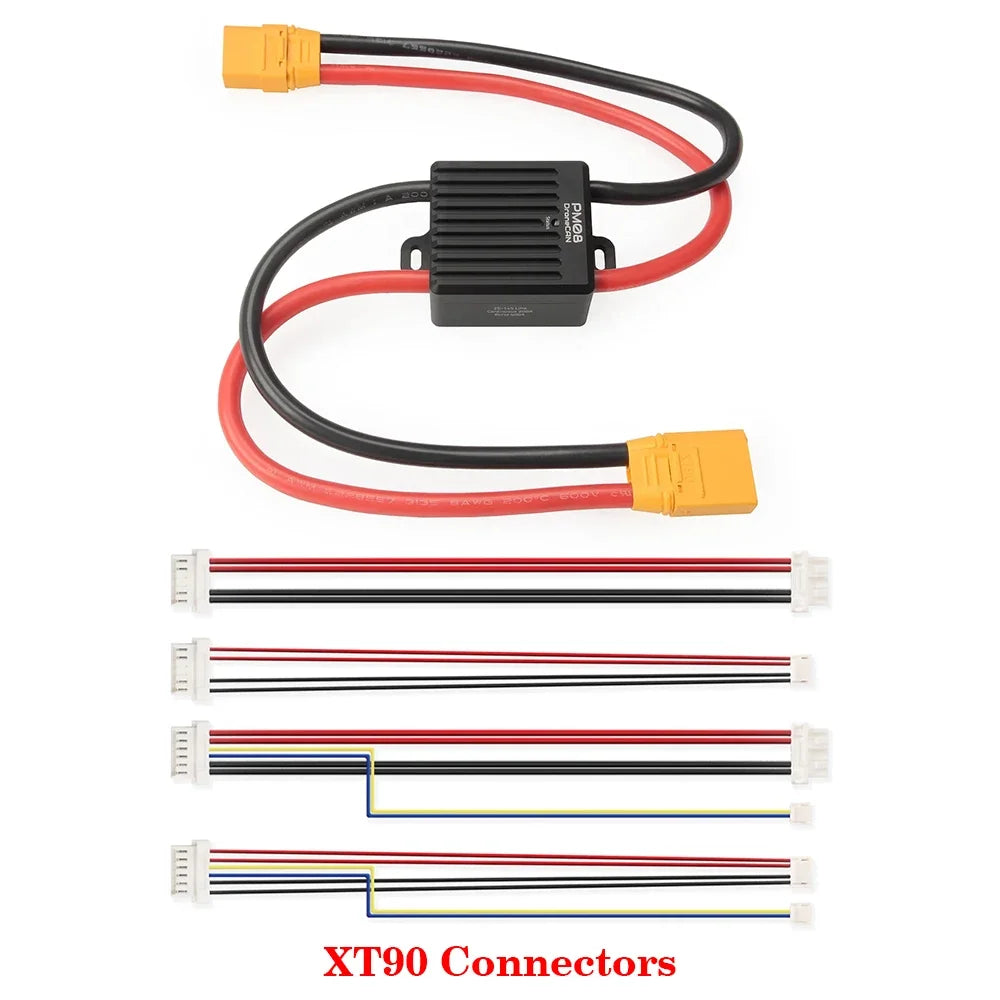

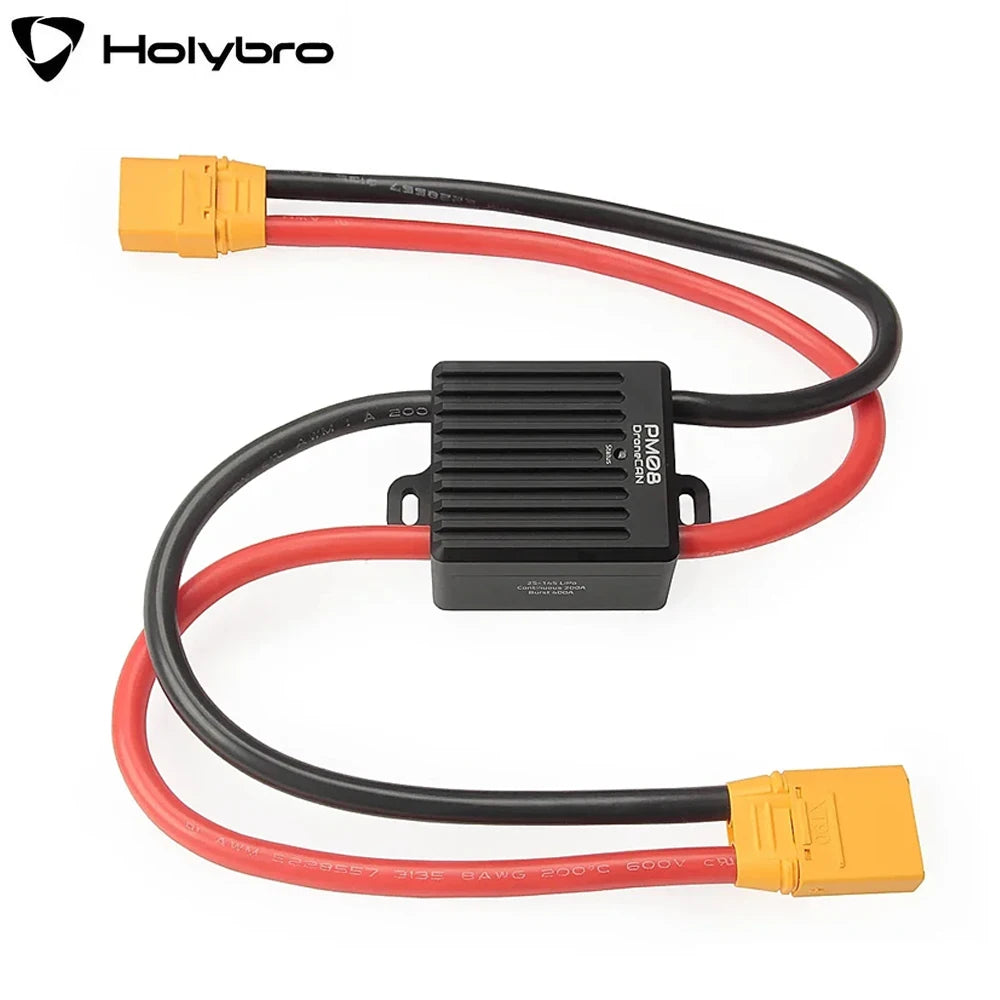

  • XT90 Connectors

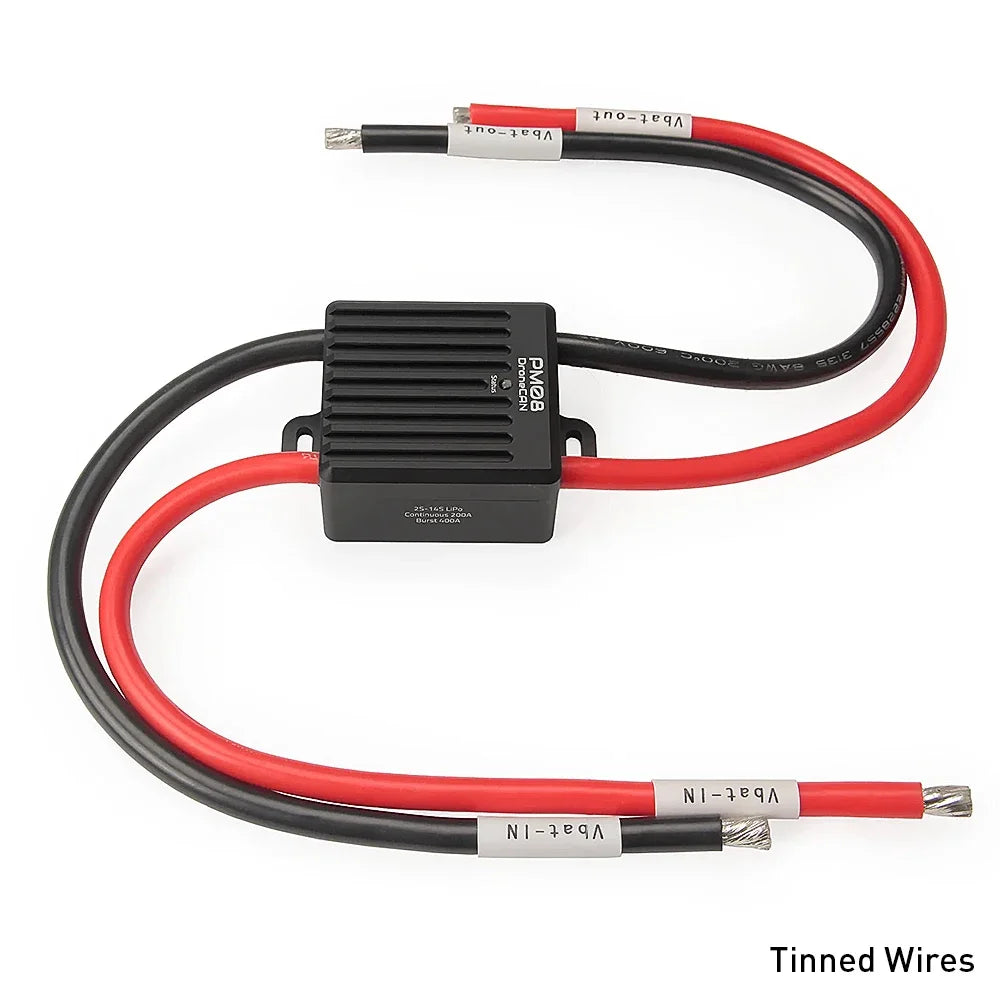

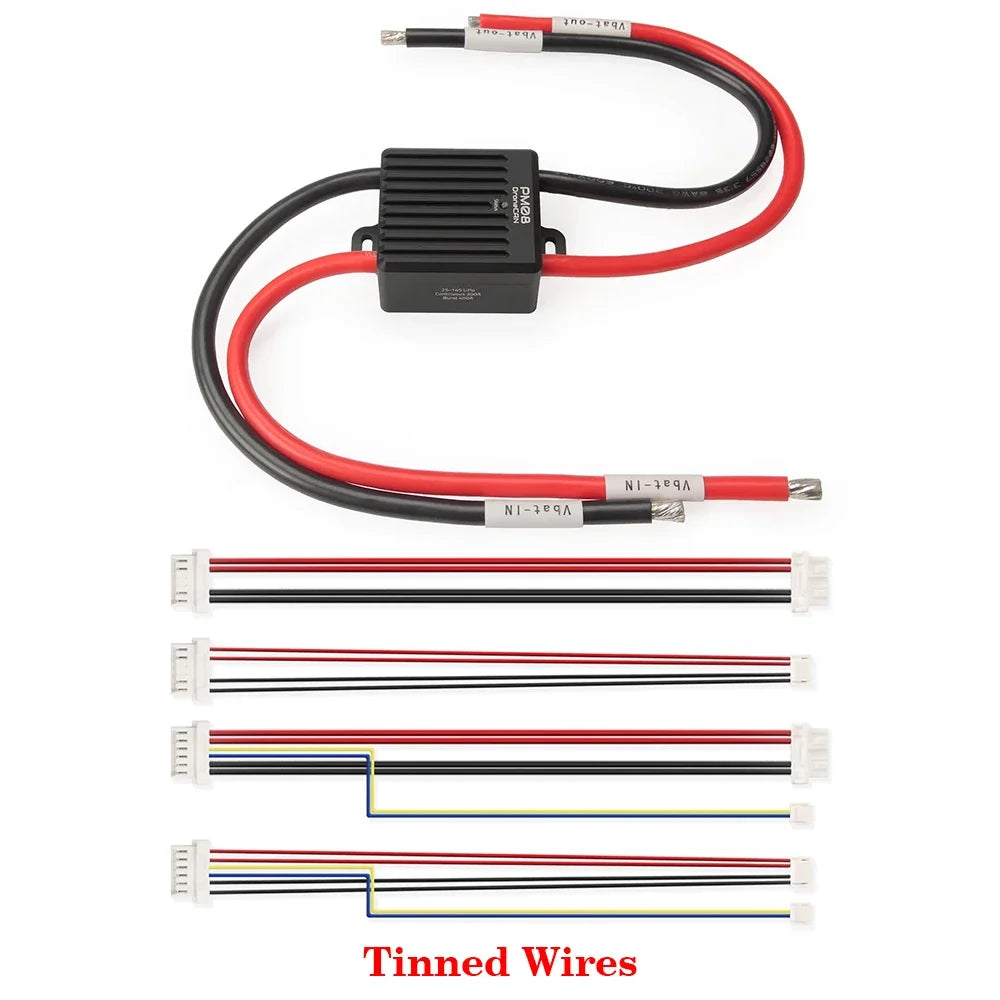

  • Tinned Wires

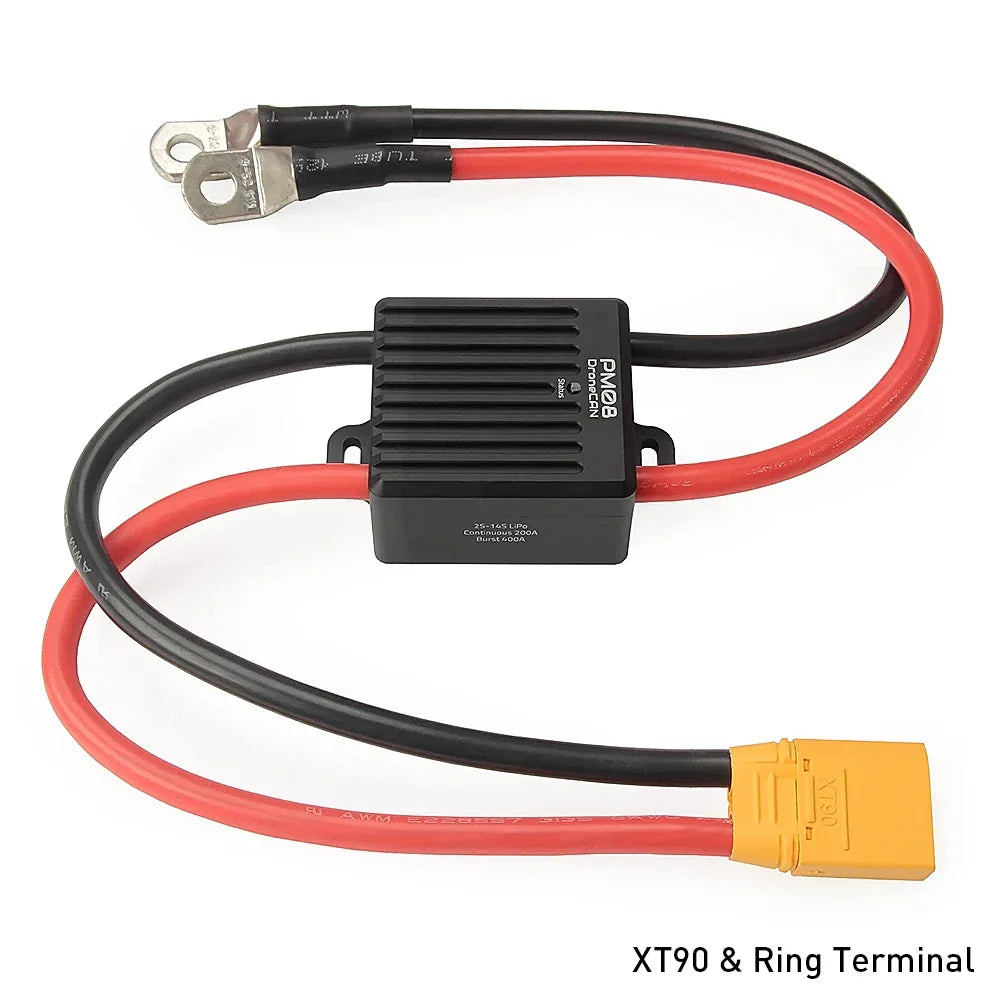

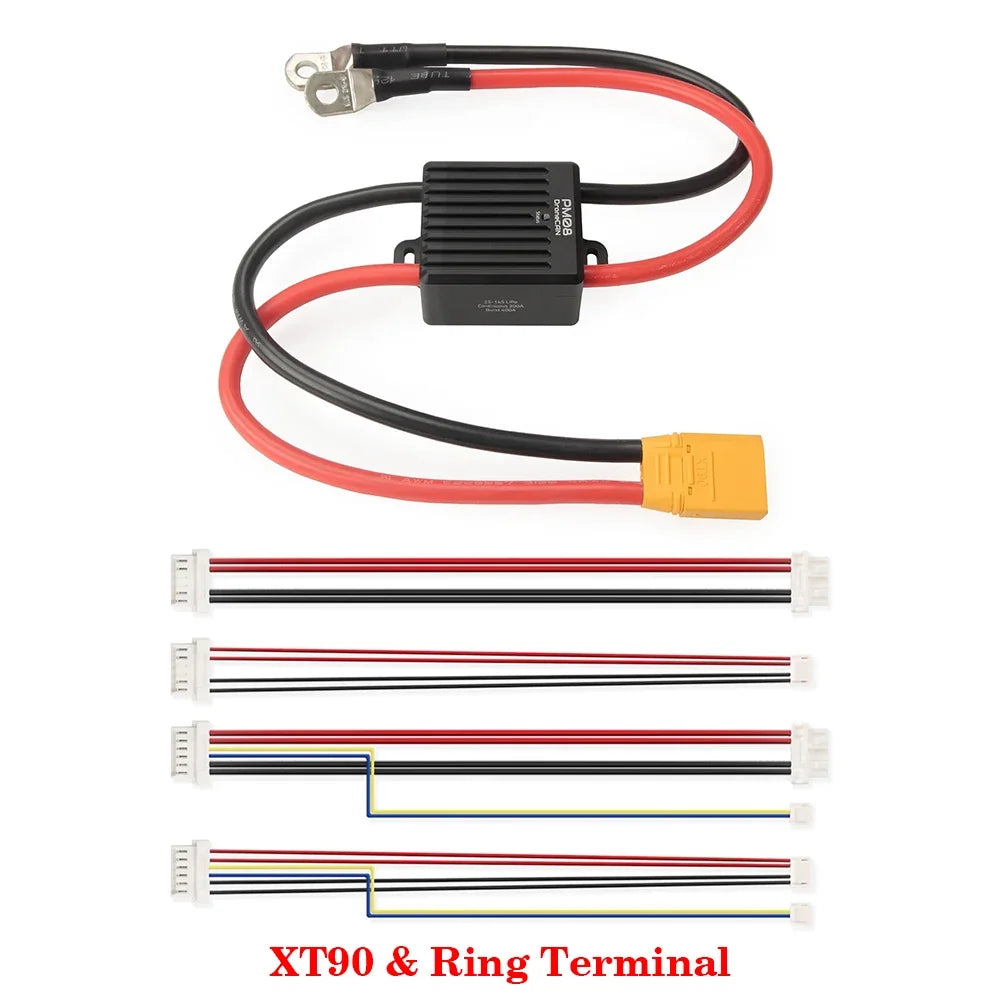

  • XT90 & Ring Terminals

• Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
• Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
• Flashing slowly (one-second intervals): CAN is successfully connected

• Size: 45mm×41mm×26mm (Not Include Cable)
• Weight: 185g (Include Cable)
