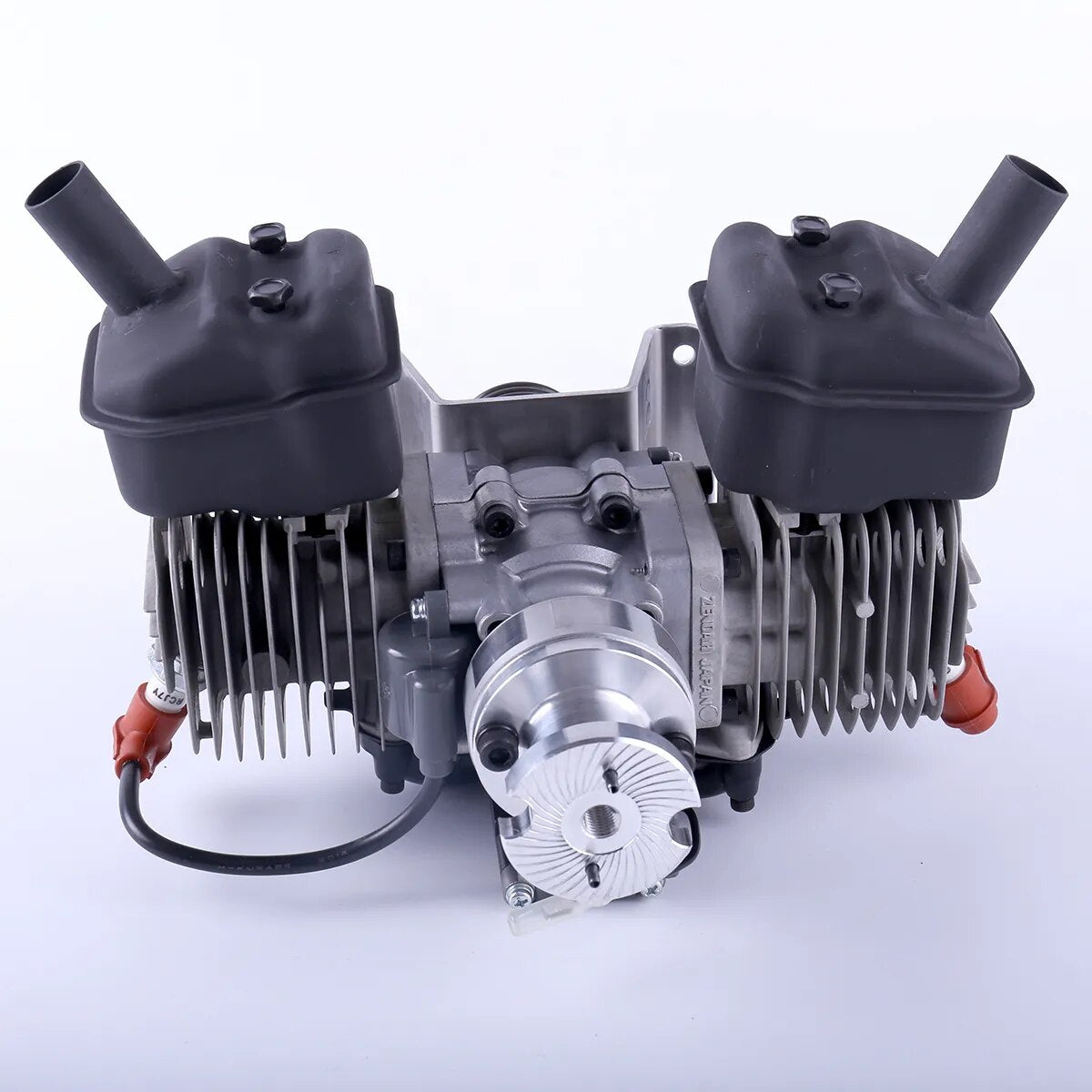

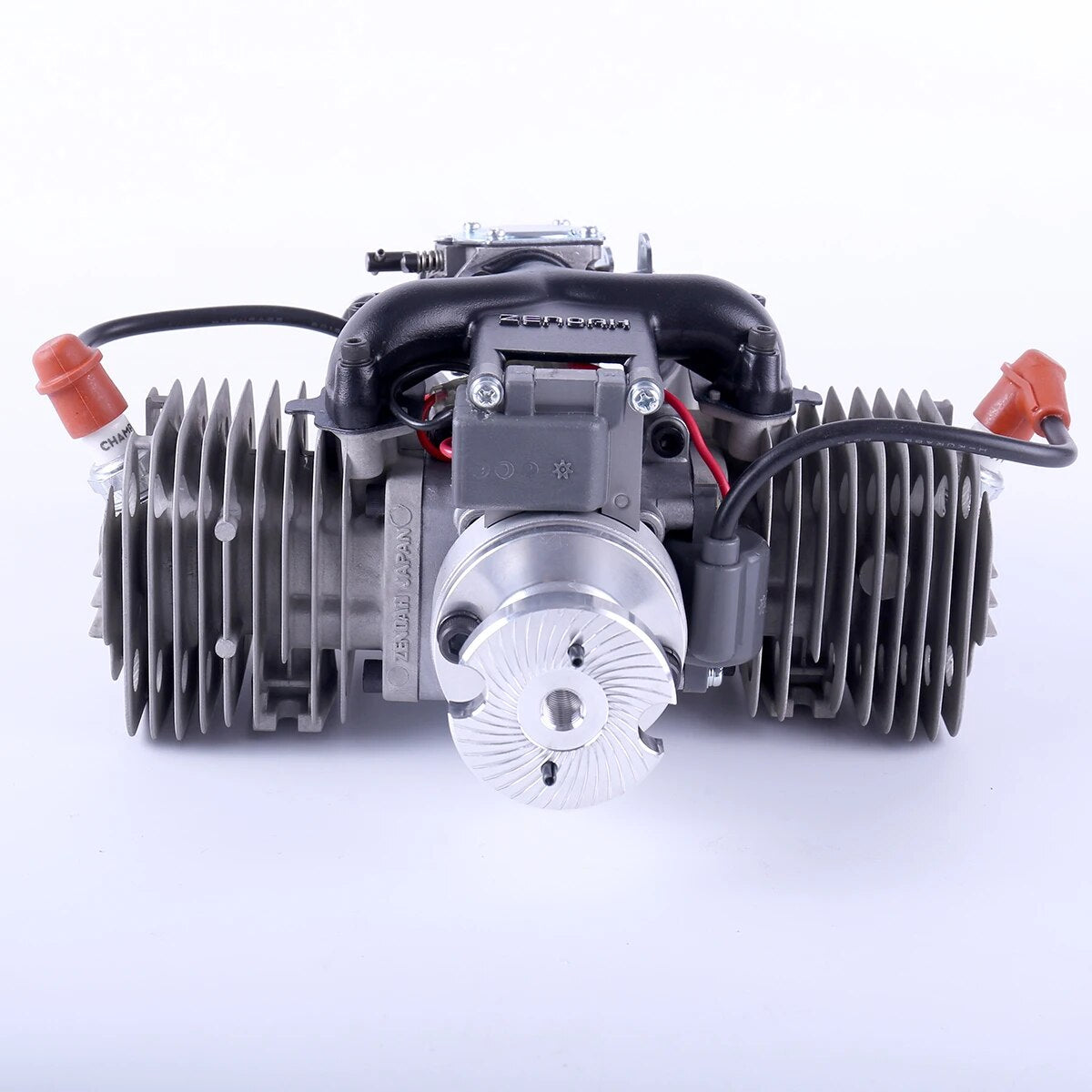

zenoah 80CC G800BPU Komatsu two cylinder gasoline engine

General gasoline helicopter fixed wing model

Helicopter suitable for: double cylinder 80CC aerial photography helicopter AF25B

Fixed wing: propeller: 23 × 12--24 × 12

It is suitable for large aircraft with a wingspan of about 2.4m and about 12kg

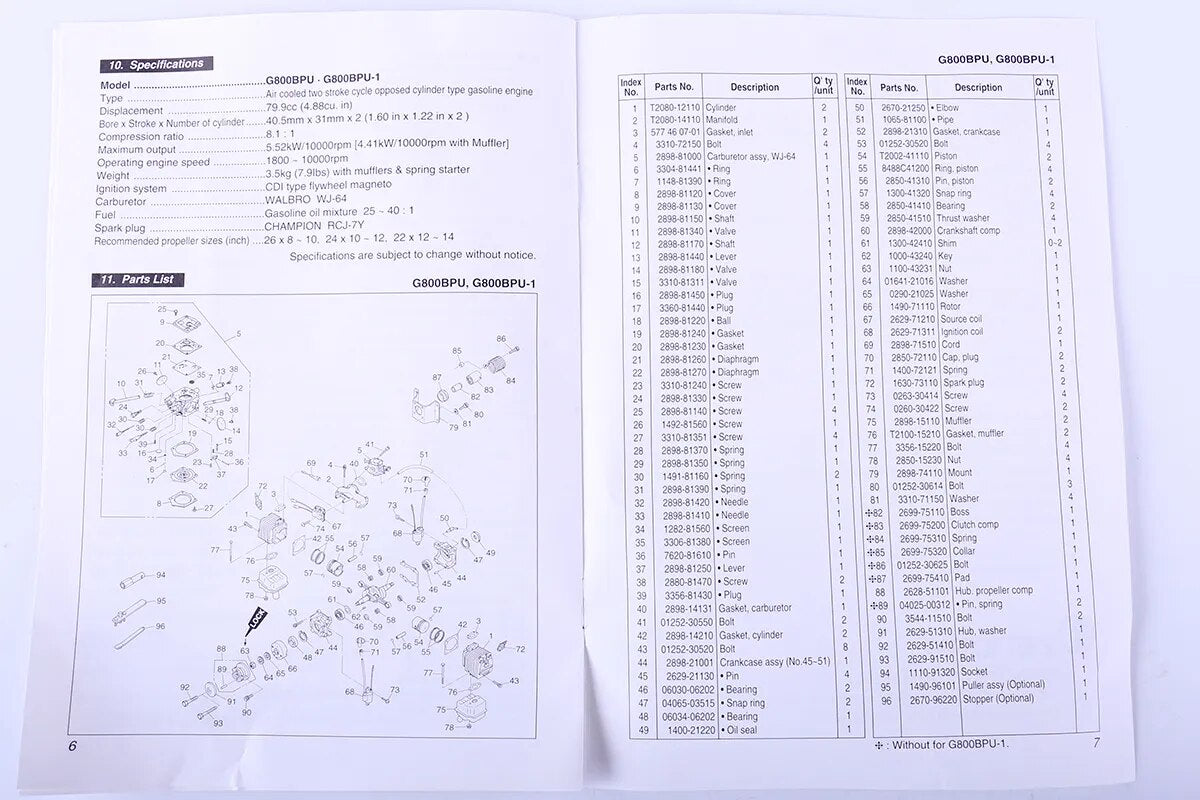

Product parameters:

Exhaust volume: 80.0cc

Compression ratio: 8.3:1

Maximum output: 5.51kw

Working speed: 1800-10000rpm

Weight: 3600g



Propeller: 26 * 8-10 / 24 * 10-12 / 22 * 12-14

Carburetor model: WALBRO WJ-64

Spark plug model: CHAMP I ON RCJ-7Y

Fuel mixing ratio: 25-40:1

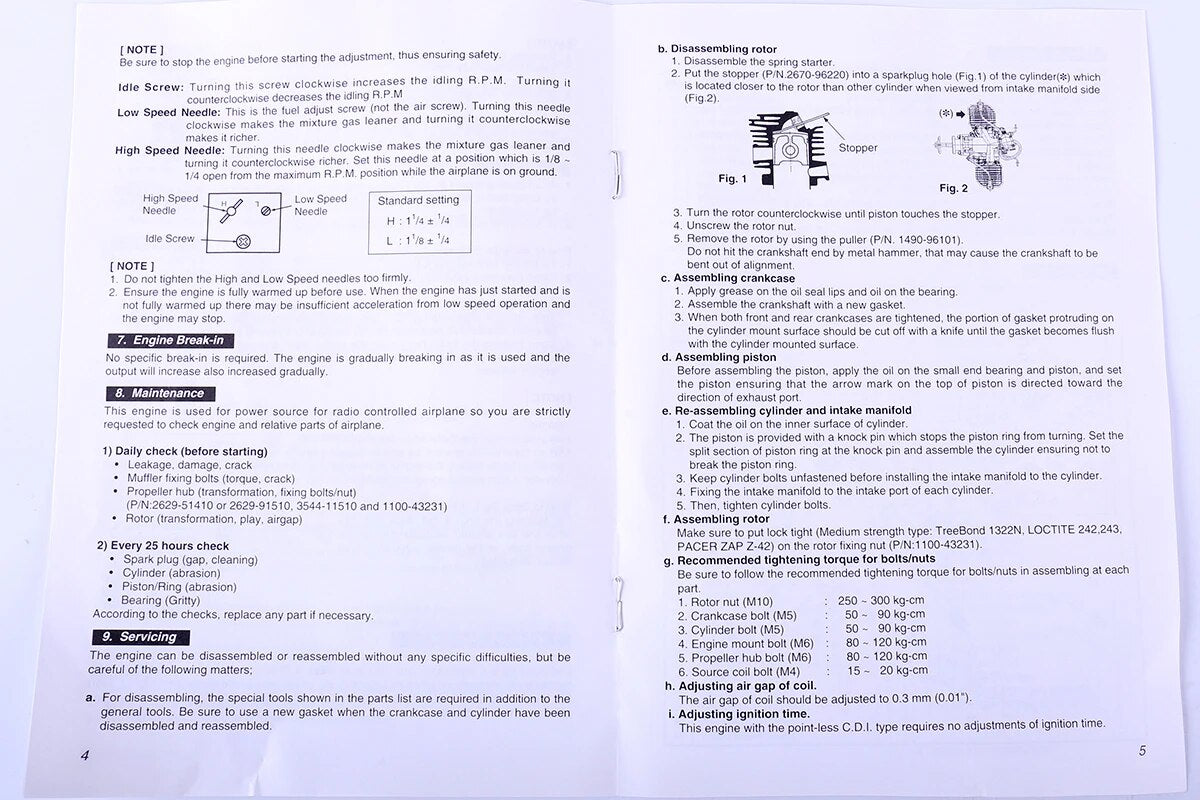

Original location of oil needle: H:1-1/4 ± 1/4 l:1-1/8 ± 1/4



Note:this engine is not suitable for beginners. It needs professionals to use it. Our store does not provide technical services.

Logistics size:31cm ×26 cm × 8cm     Logistics weight:4.5KG/piece

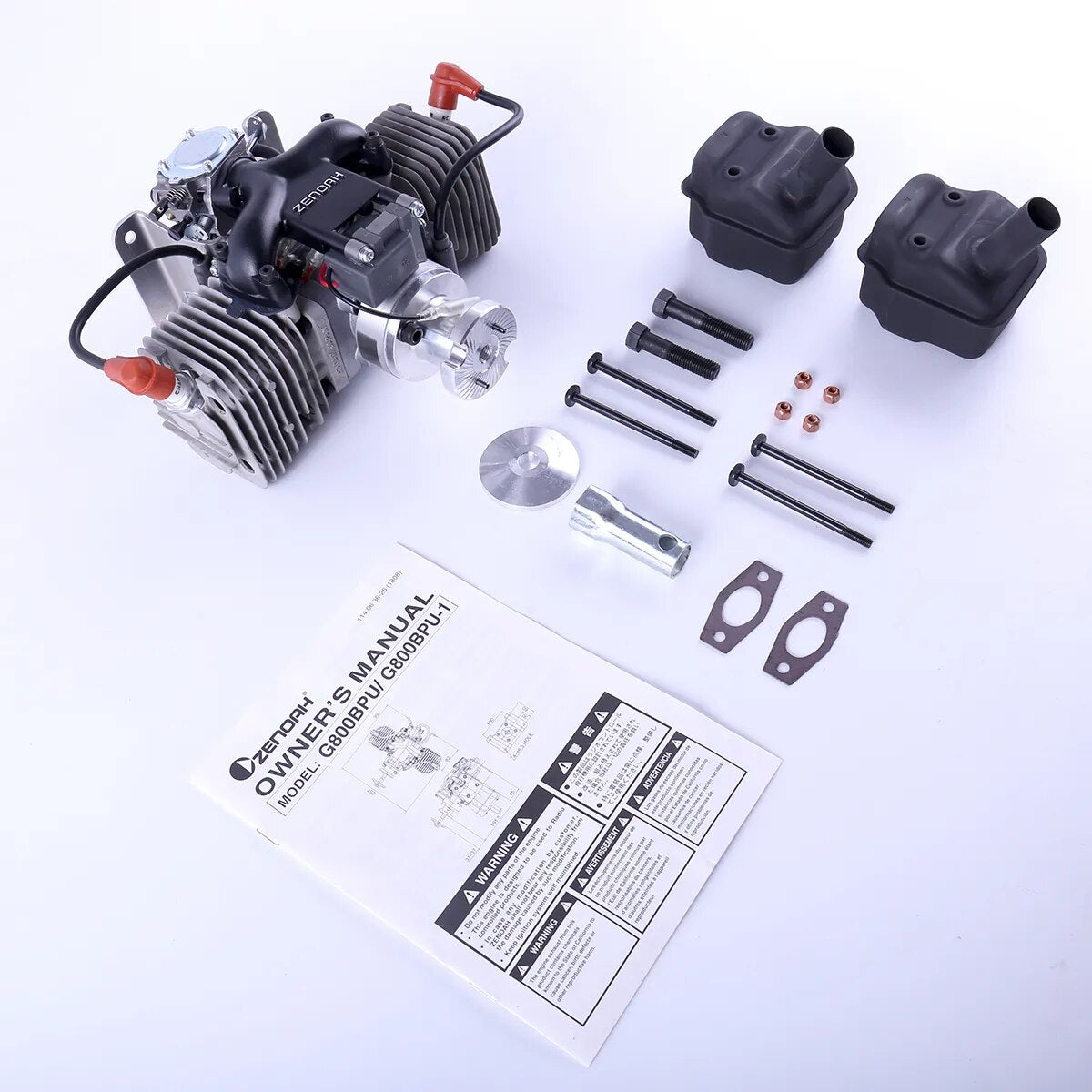

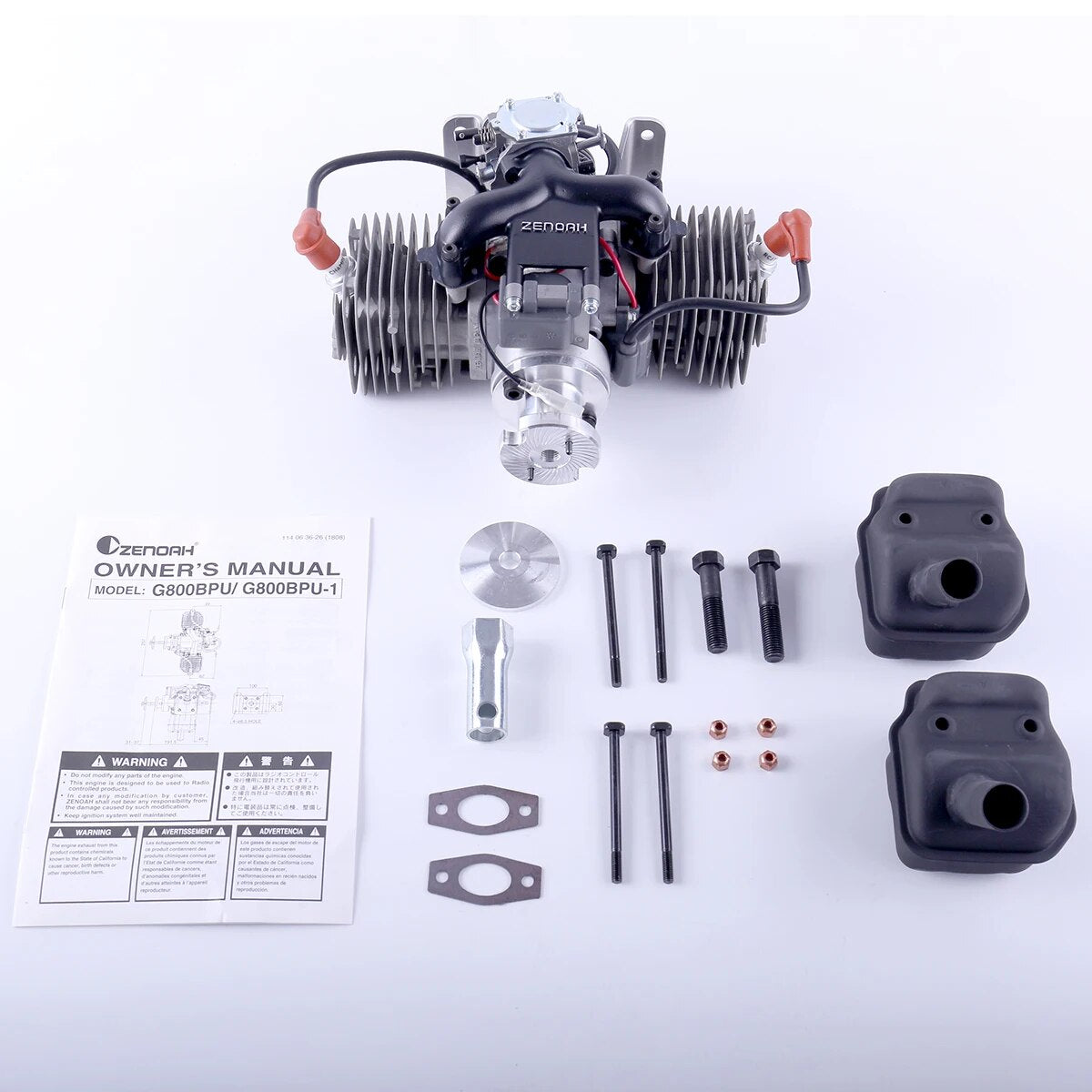

Packing list:

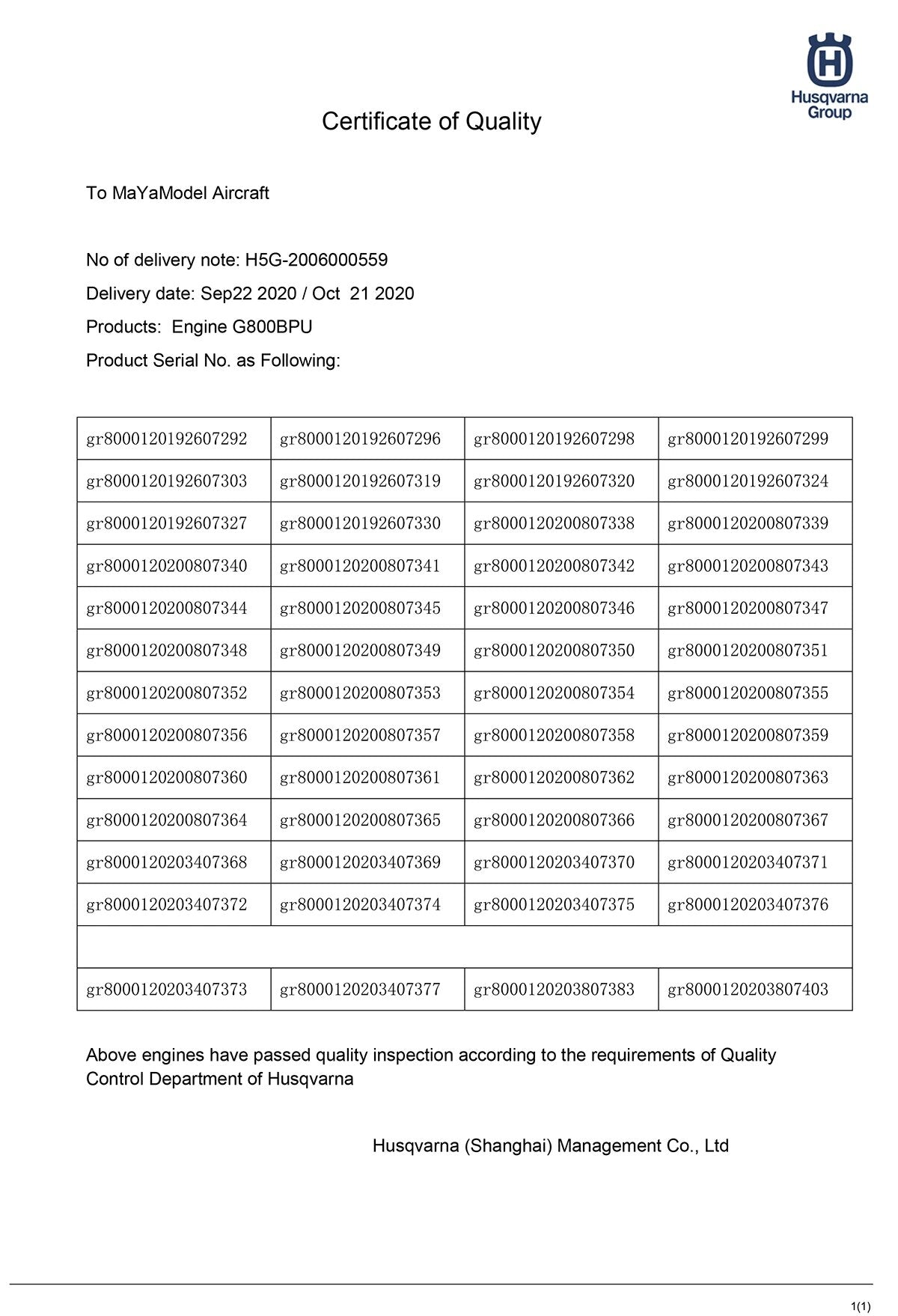

The company purchases through regular channels, and each machine has a unique code
