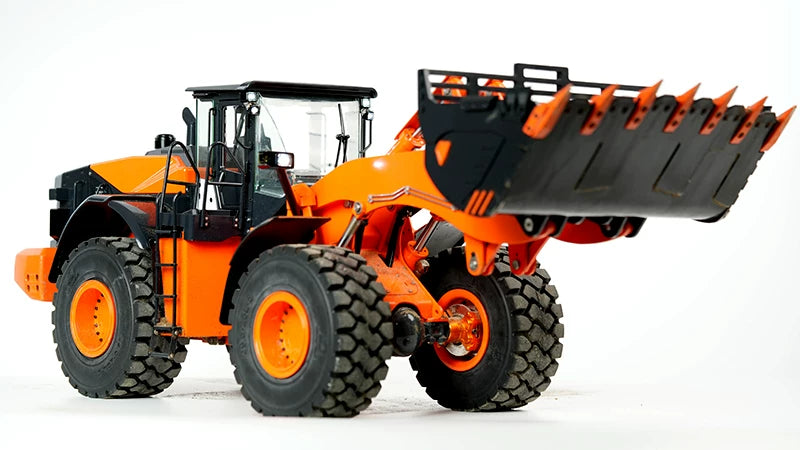

JDMODEL JDM-198 1/14 Remote Control Hydraulic Loader ZW370 LOADER with light sound RT
JDMODEL JDM-198 1/14 Remote Control Hydraulic Loader ZW370 LOADER with light sound RT
Regular price
$2,930.00 USD
Regular price
$3,200.00 USD
Sale price
$2,930.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Lithium battery and charger are not included; please provide your own 3S lithium battery.
RTR (Ready-to-Run) Configuration: Includes standard remote control, ESC, servo, lighting system, sound module, and motor.
Scale: 1:14

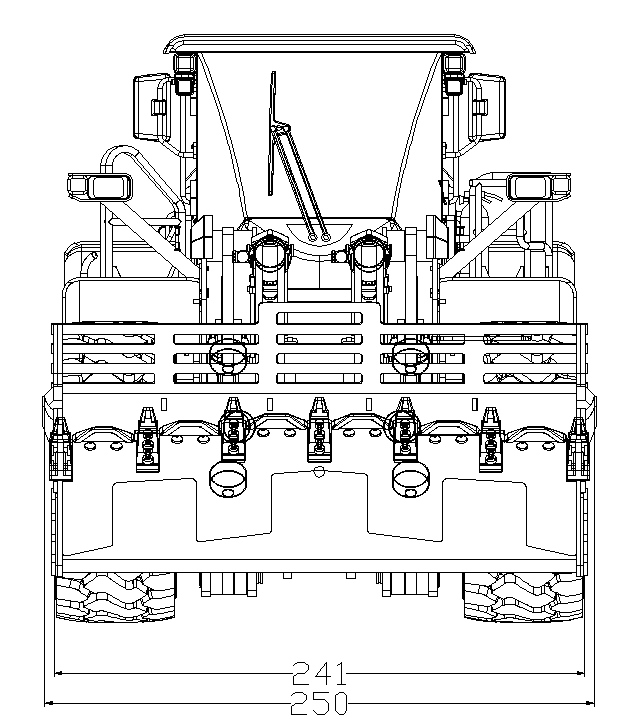

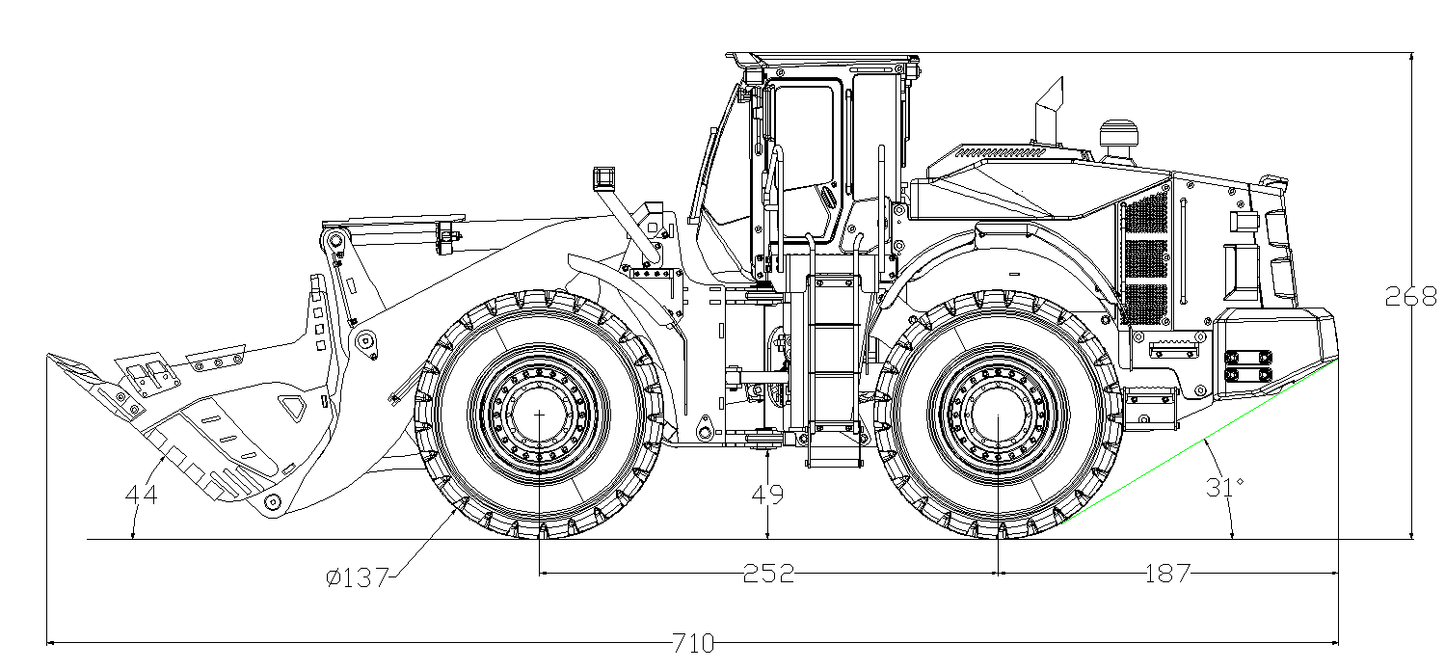

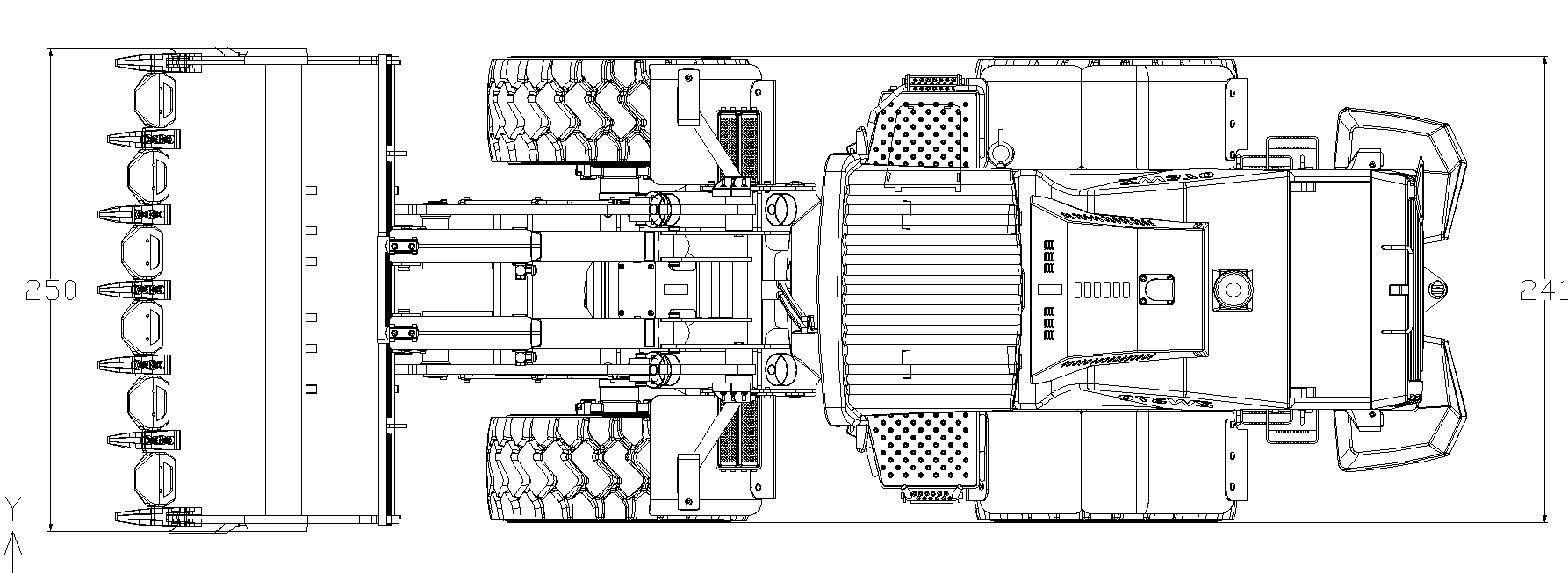

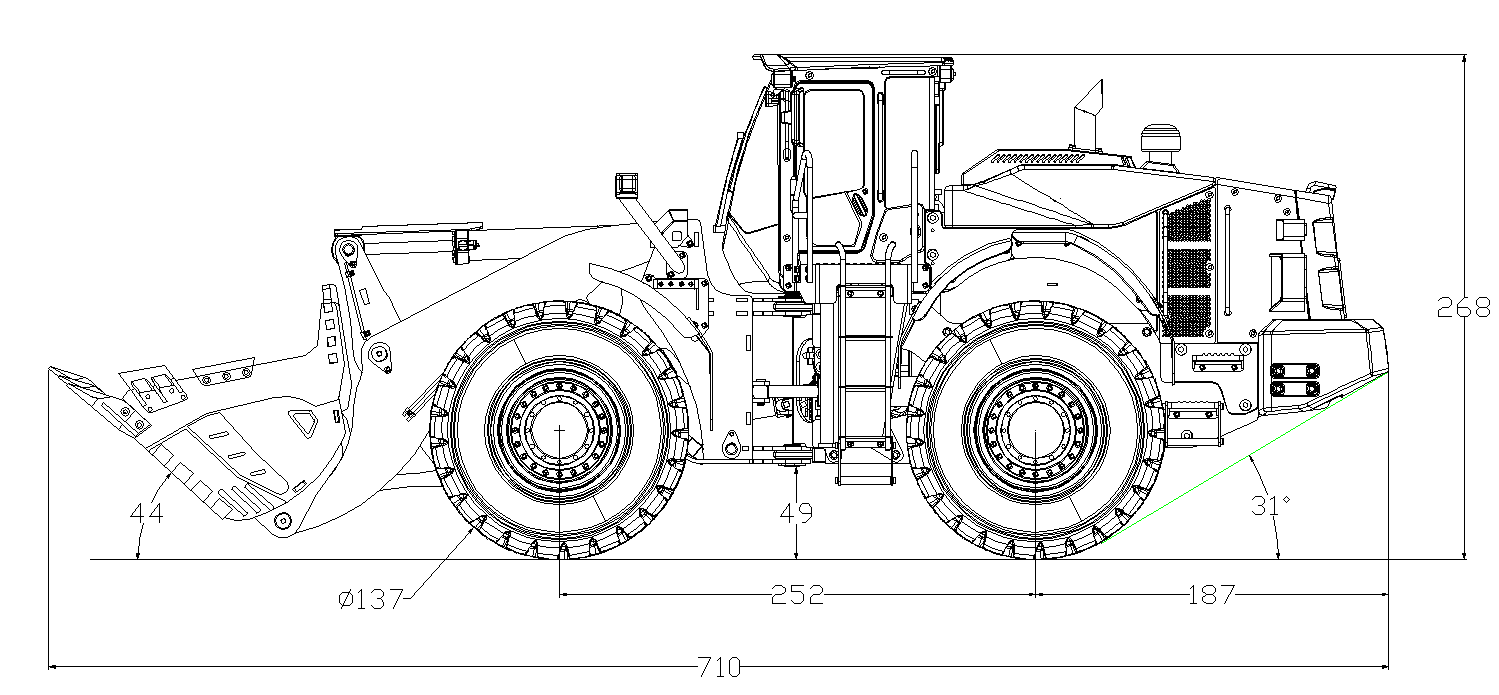

Dimensions: Length 710 mm (with bucket leveled), Width 250 mm (at tire outer edges), Height 268 mm.
Vehicle Weight: 16.5 kg
Theoretical Lifting Force: 15 kg (boom lift) | Theoretical Traction Force: 30 kg

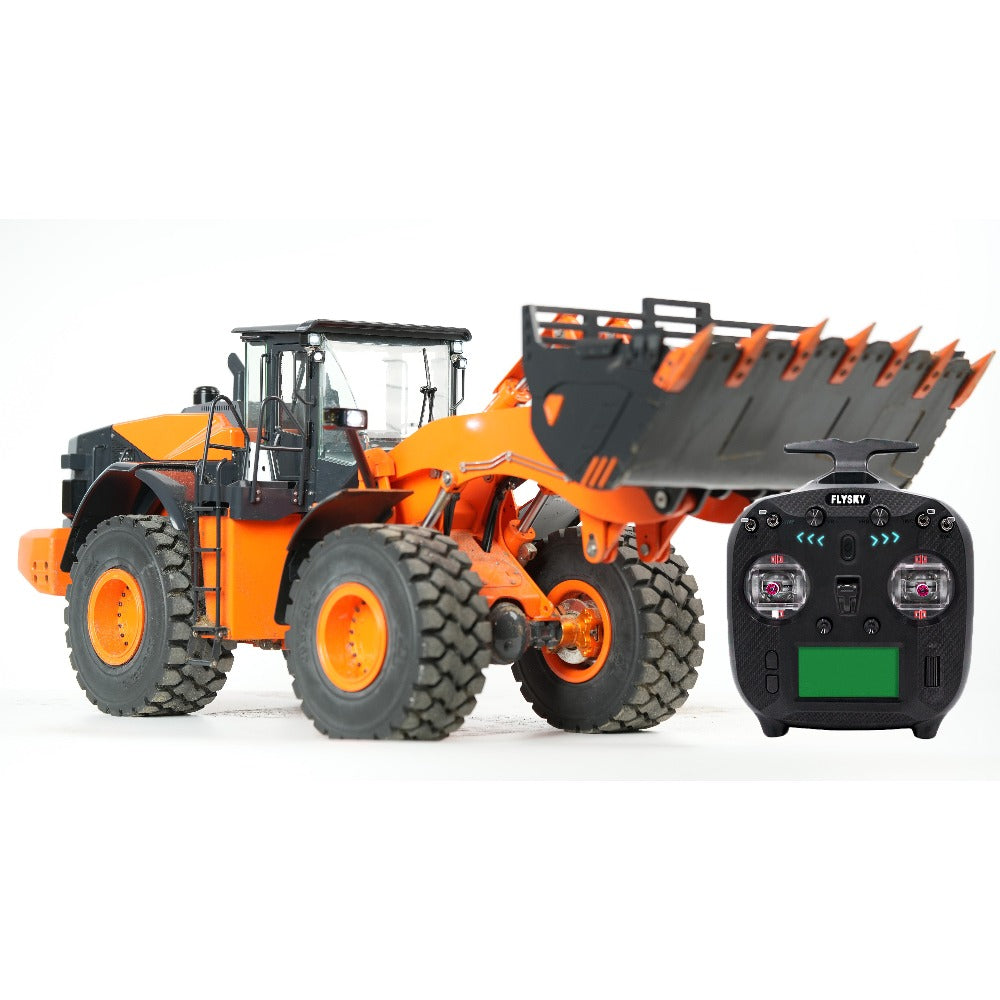

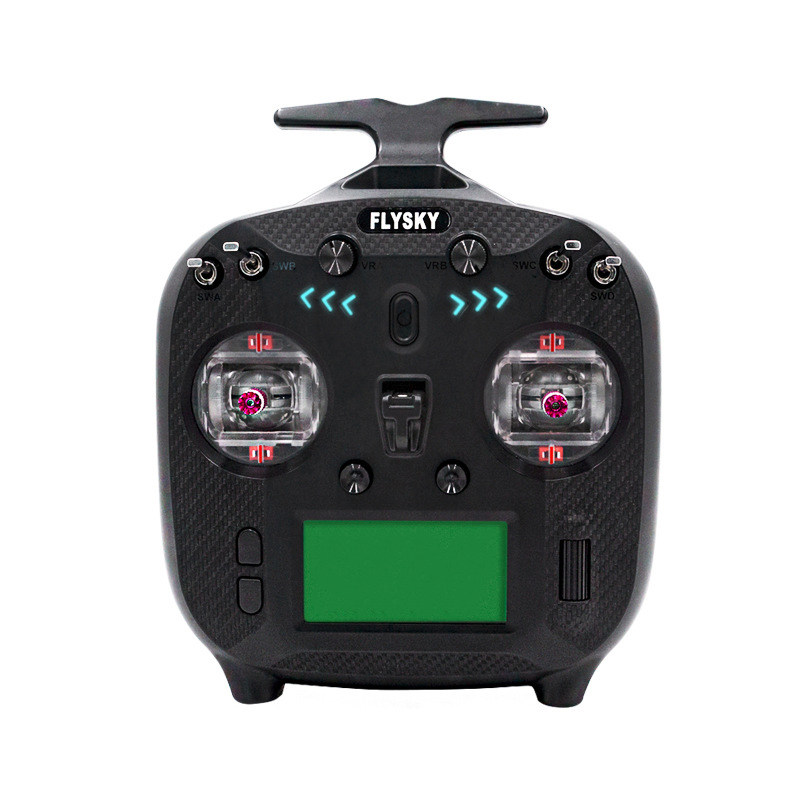

Remote Controller: Flysky ST-8 (requires 4x AA batteries; please ensure correct polarity when connecting).
Power Supply Voltage: 12V (requires a 3S lithium battery; dimensions must be within 150 mm L x 45 mm W x 35 mm H).
Sound System: Included (Standard)
Hydraulic Pump: Flow rate 0.8 L/min; Rated pressure 2.5 MPa; Max pressure 5 MPa.
Directional Control Valve: Miniature 3-way rotary-type valve with central oil return port.

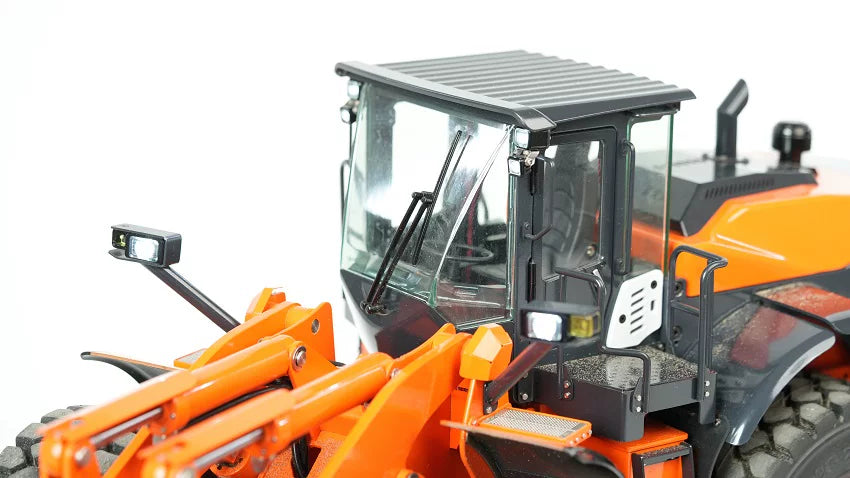

Lighting System: Included (Standard); features low beams, high beams, fog lights, and roof lights.
Transmission: 2-speed planetary gearbox; Gear Ratios: 1st Gear 1:64, 2nd Gear 1:16.
Axles: Gear Ratio 1:10.4; features lockable differentials.
Important Note: When the boom is in its lowest position and the bucket is dumping material, *do not* attempt to lift the boom; doing so may damage the bucket hydraulic cylinder.
Due to the substantial weight of the vehicle, avoid impacts or collisions during handling; otherwise, the axles and bucket hydraulic cylinder may sustain damage.
