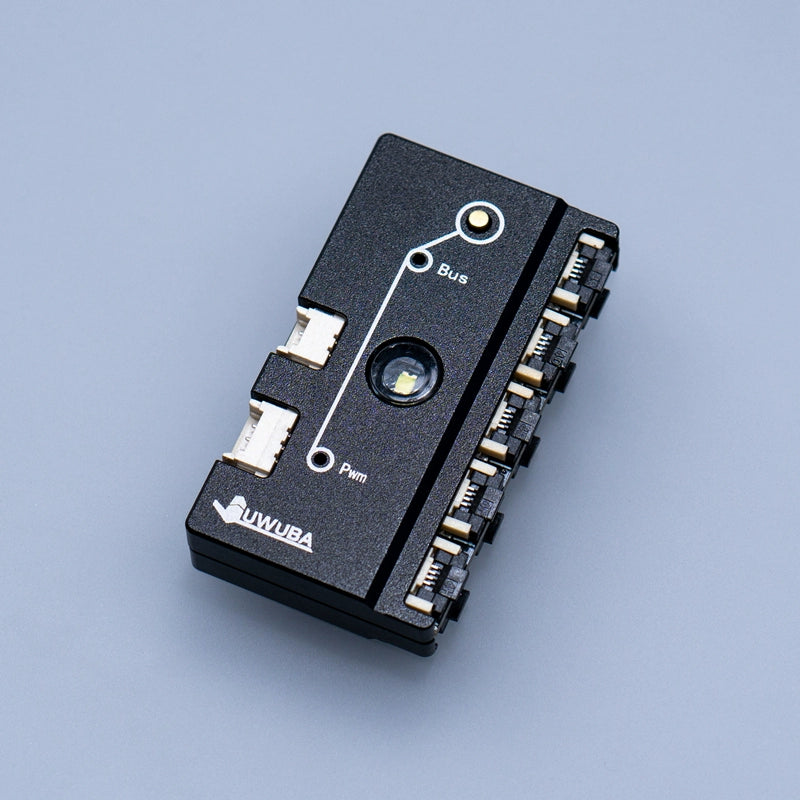

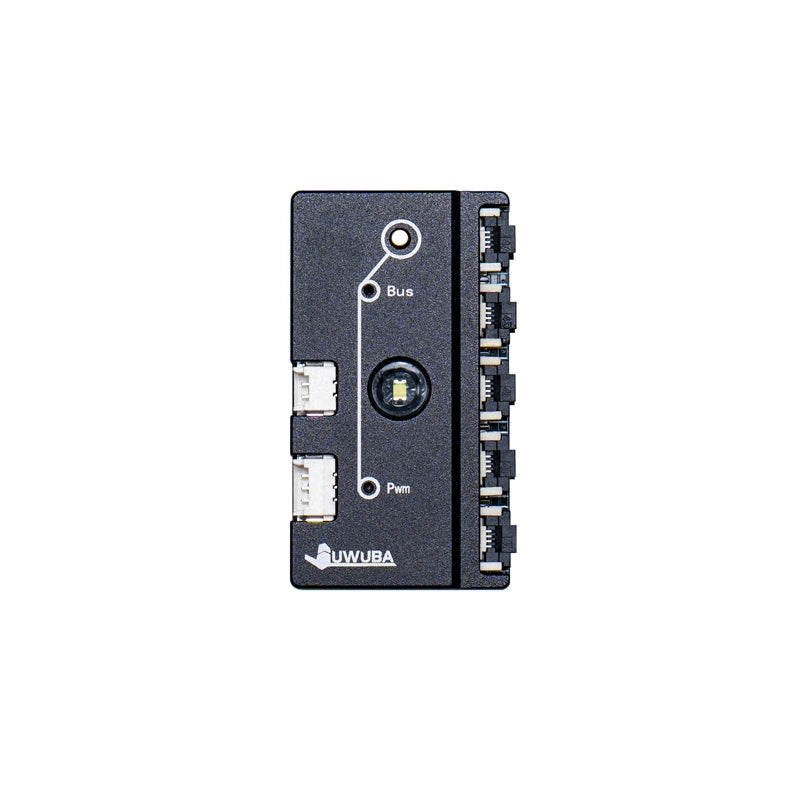

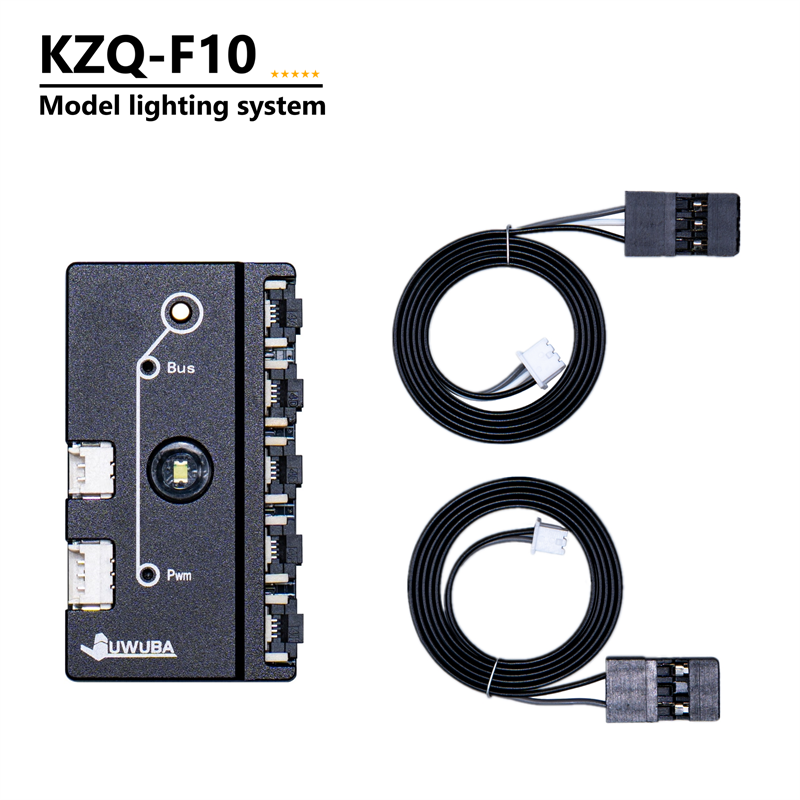

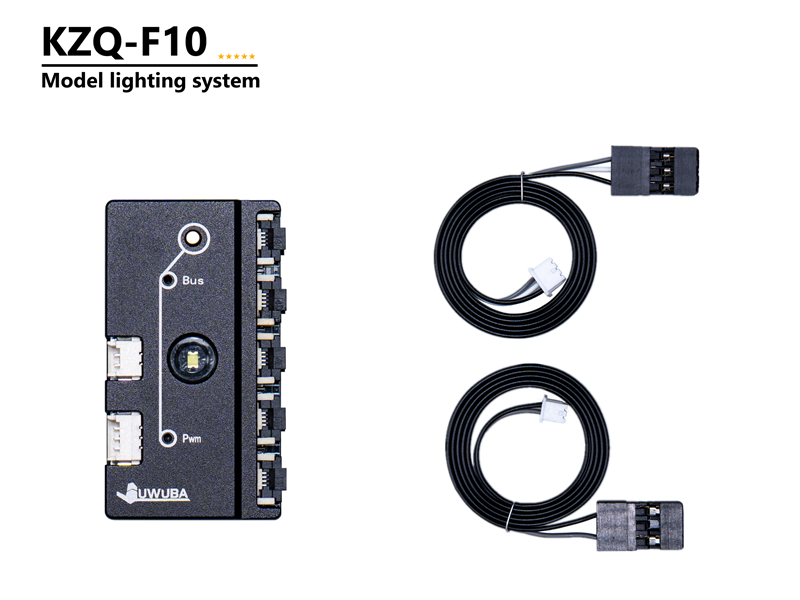

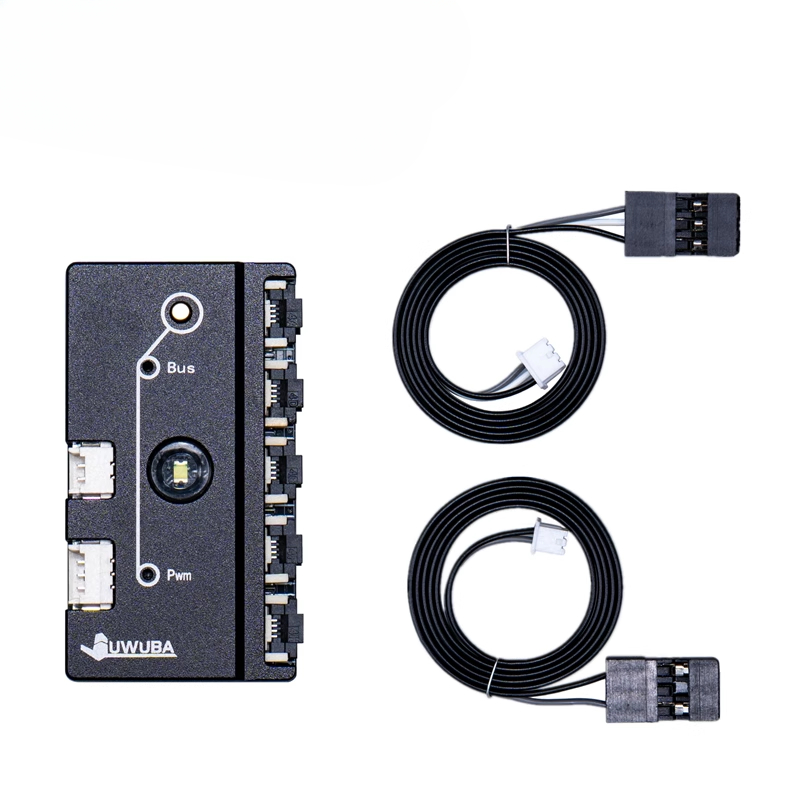

JWB 1/14 TAMIYA RC TRACTOR Lamp Set KZQ-F10 Light Control Expansion Board LED Driver

Brand: jwb
New special light group

Function: It can be directly plugged into the receiver to control the switch light linkage with two switch channels.

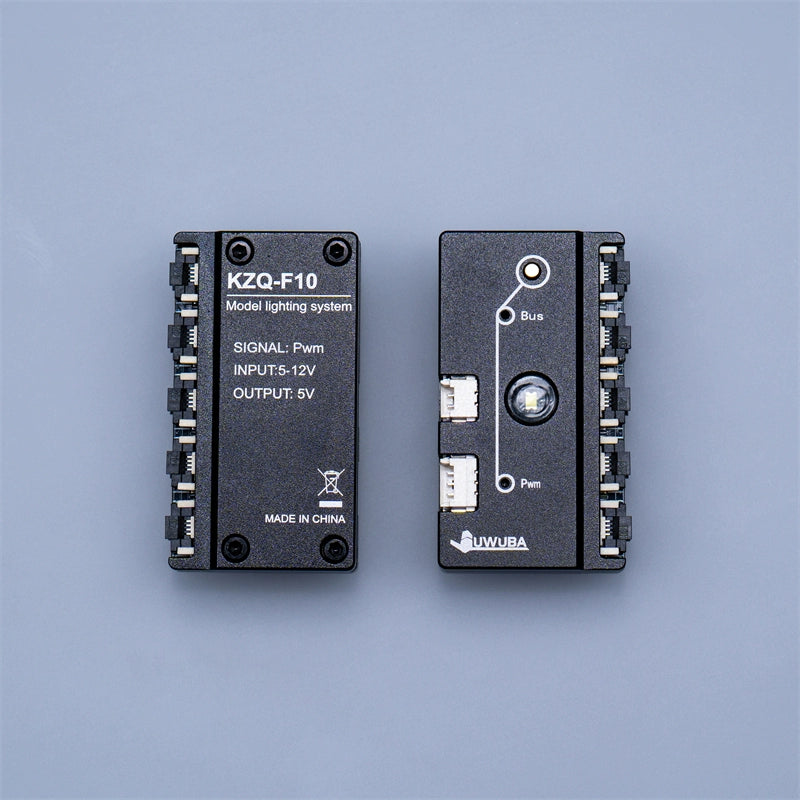

Model: KZQ-F10

Size: 40x22x8mm

Power supply: directly plug in the receiver to take power (5-12V)

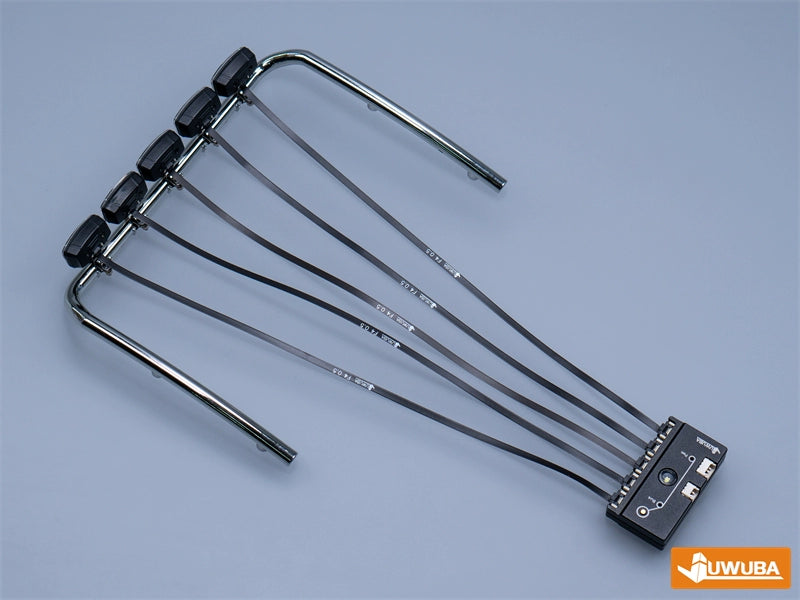

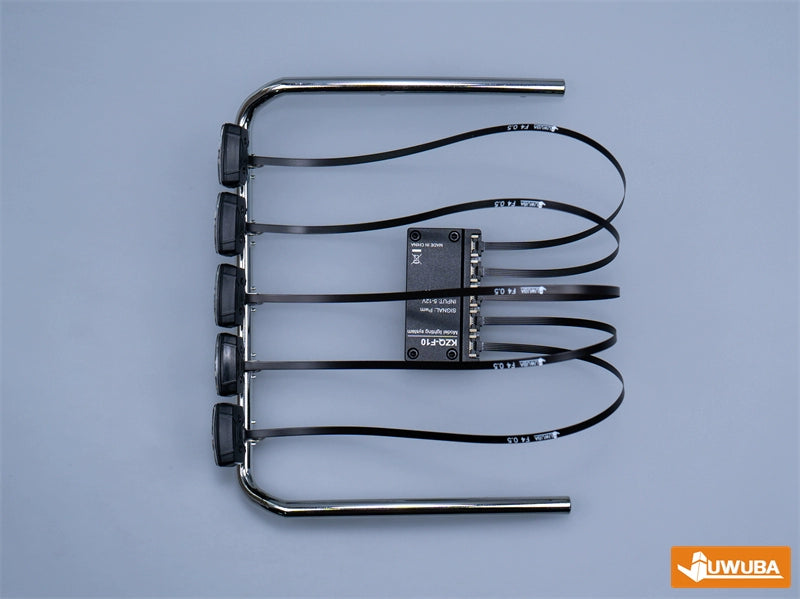

Applicable scenario: Suitable for Big Mac's new F4 interface light

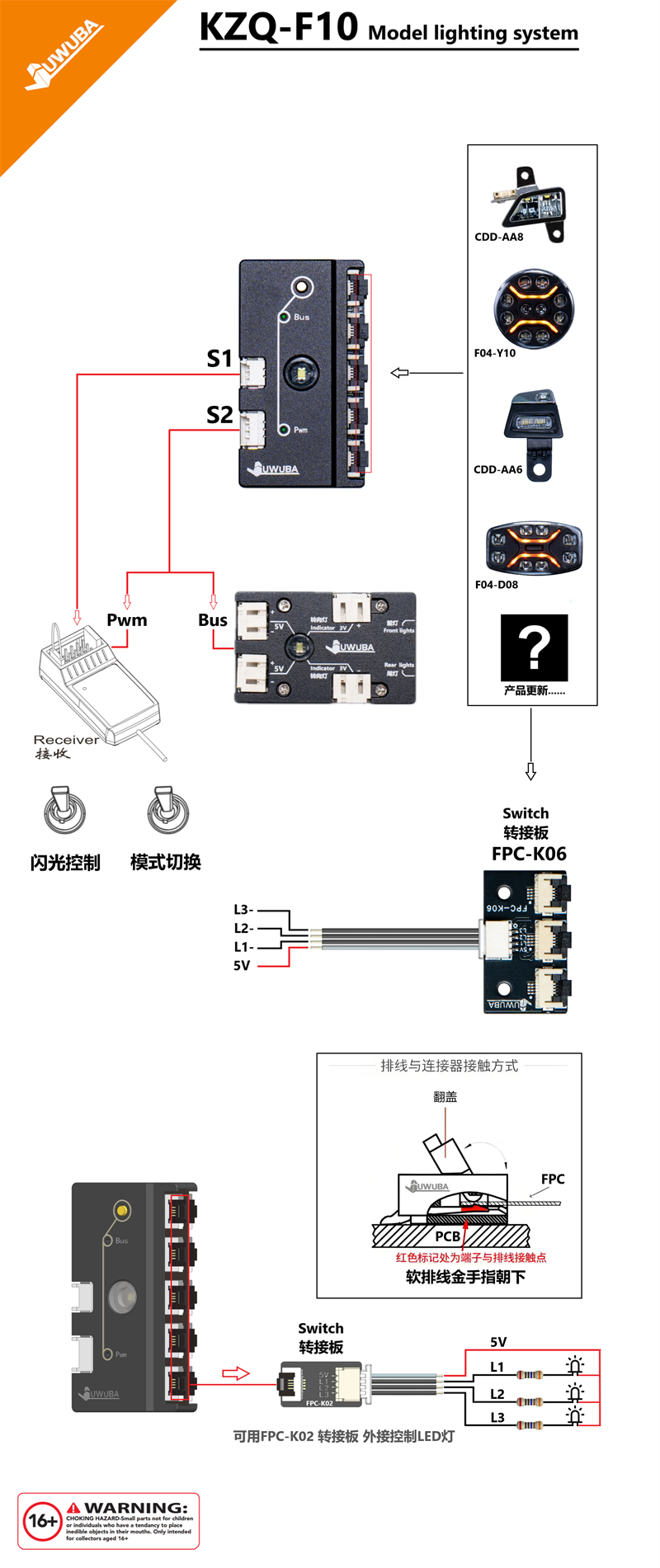

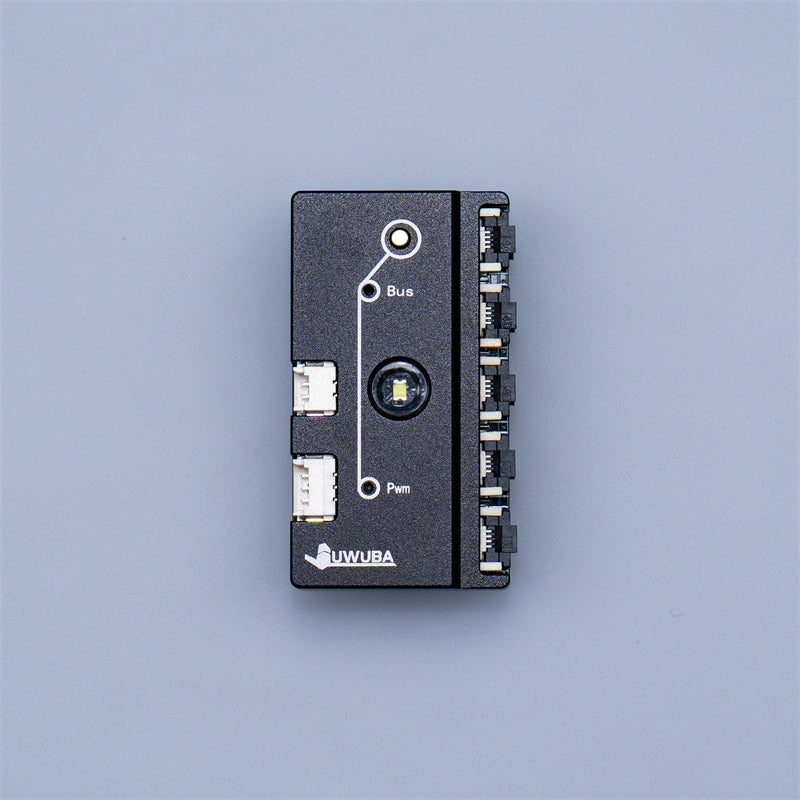

Light control S1 interface: use the receiver PWM signal to control the spotlight to turn on (it can be linked with the sound group whistle channel)

S2 interface: 1. Pwm mode, the receiver controls the switch on mode.

2. Bus mode, you can connect our Angry Bear special light group to realize on-off light linkage (flash mode cannot achieve cyclic control in this mode)

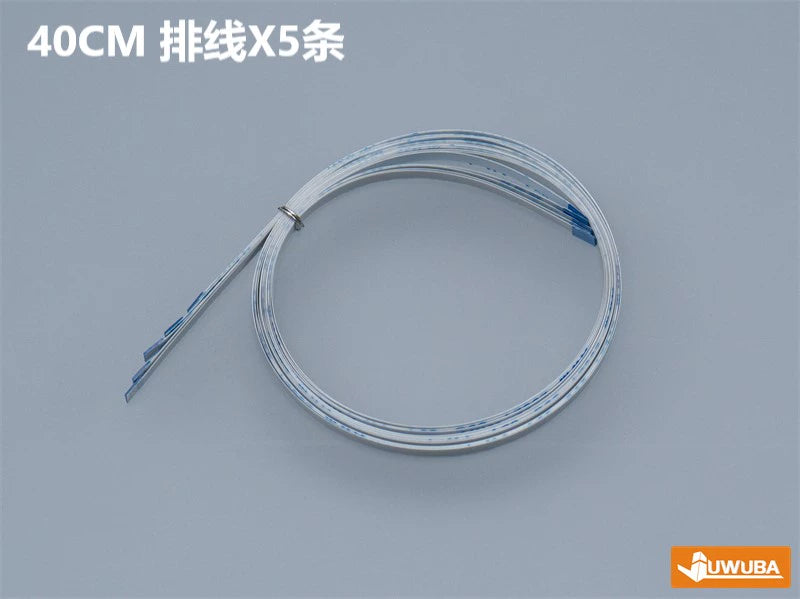

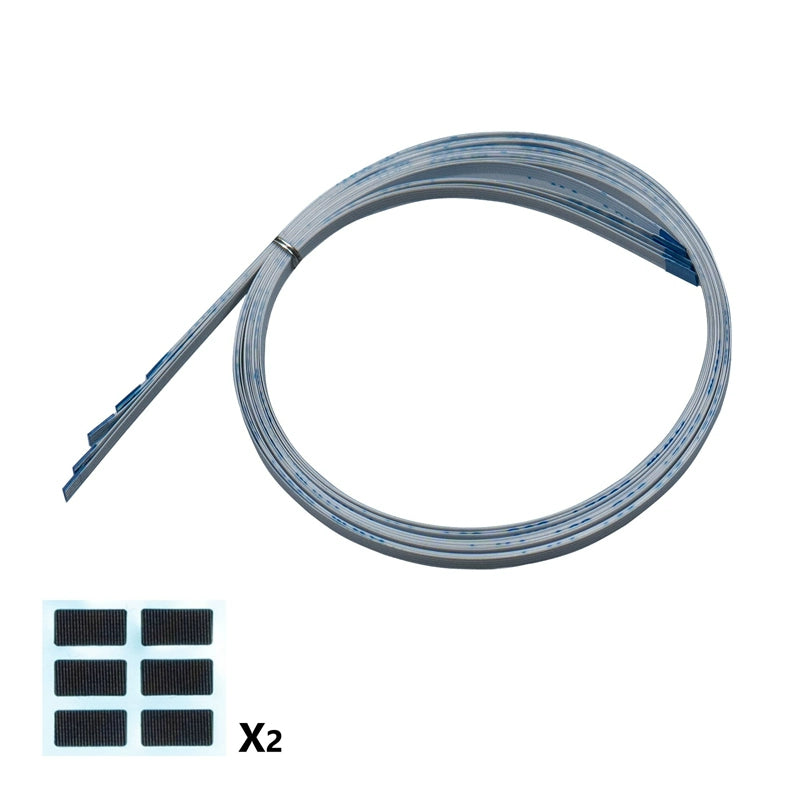

Note: The lamp-controlled cable interface is relatively precise, and it is lightly opened and pressed when using it.
