LESU 1/14 Rc Hydraulic Engineering Vehicle Hydraulic Reversing Valve 7ch Y-1537

Brand: LESU
Model: Y-1537

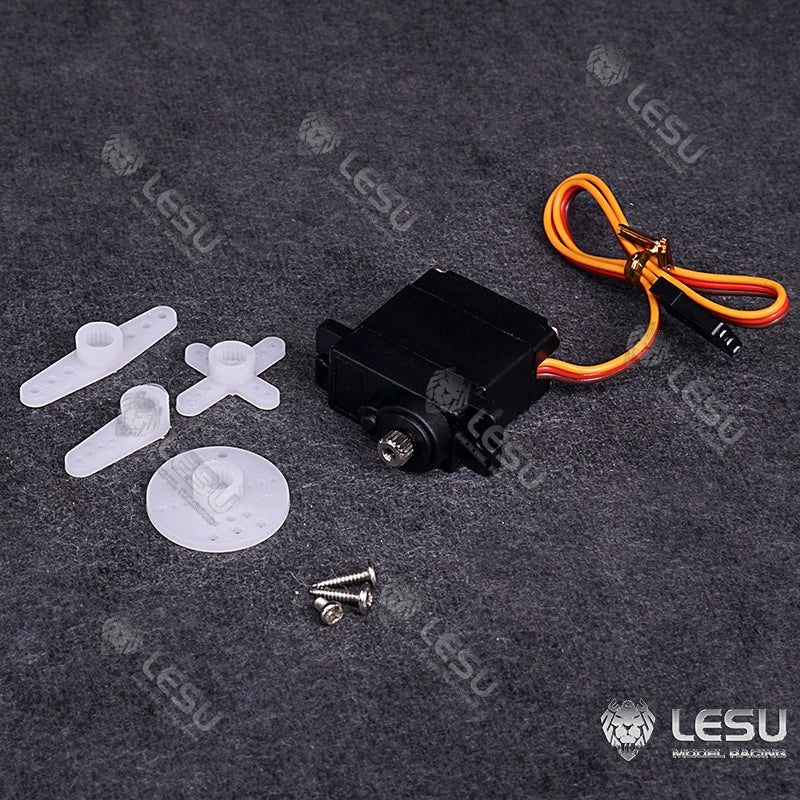

Multi-position reversing hydraulic valve (including steering gear)

Remarks: Add the hydraulic oil circuit composed of the overflow valve, and the oil will be automatically returned. Don't worry about not closing the oil pump in time when the oil cylinder rises to the top; adjust the oil pump pressure for higher playability.

LESU model multi-position hydraulic reversing valve (multi-way valve does not have a medium return function, need to install relief valve. Oil flows back to the tank when not in action).

Use requirements: rated pressure 2.5-3 MPA, compact size.

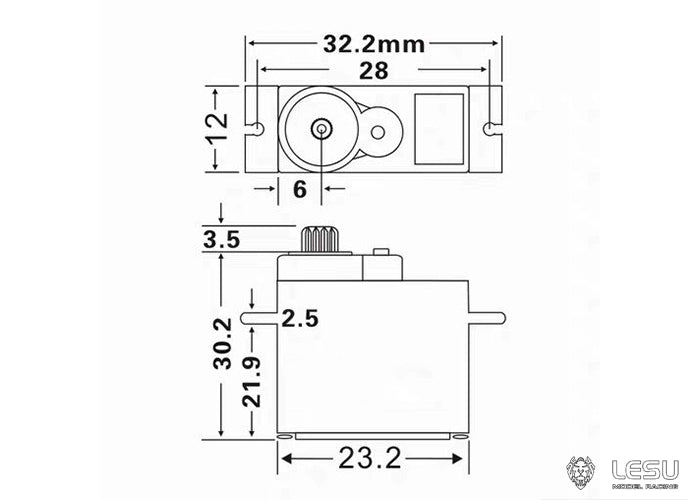

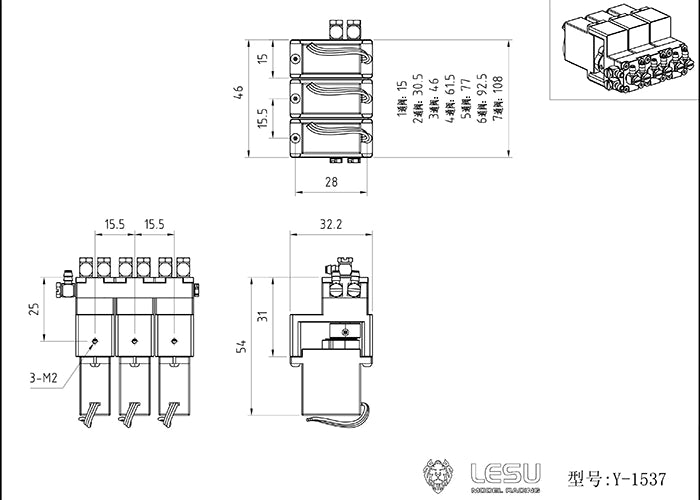

Installation size drawing:

Instruction manual:

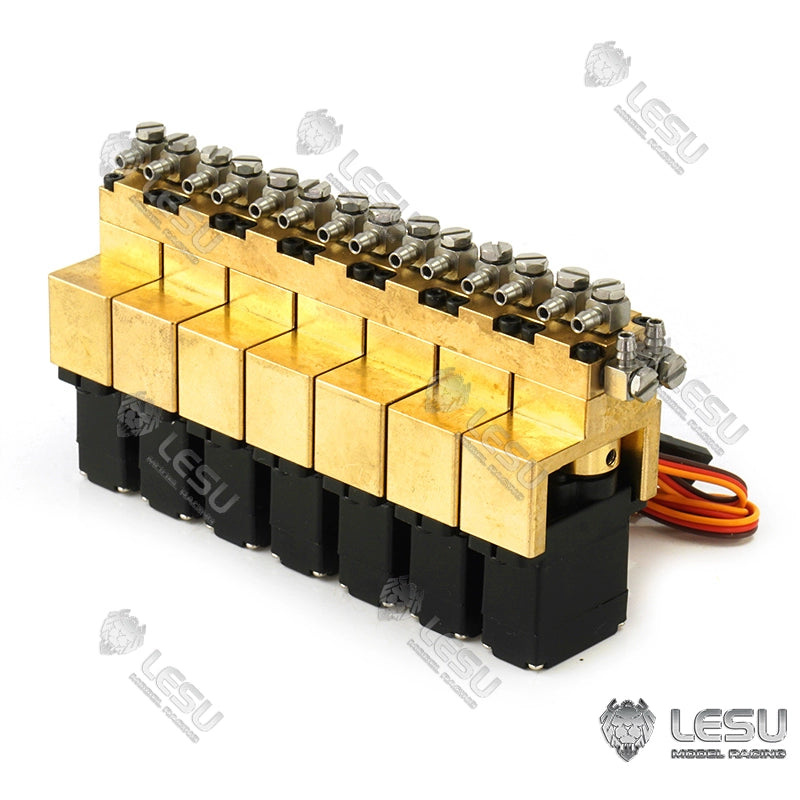

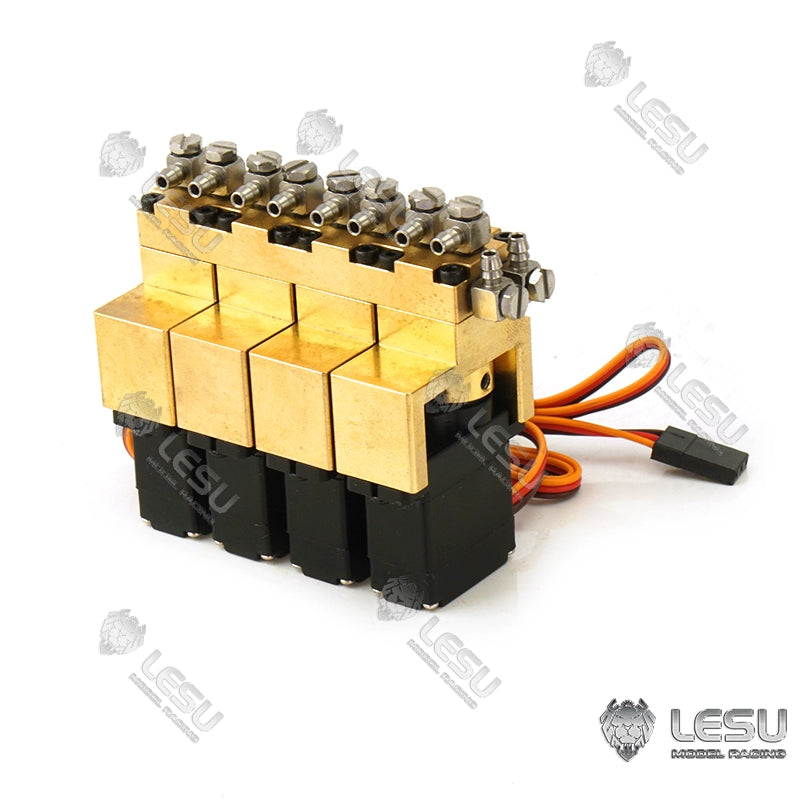

Real picture of multi-way valve:

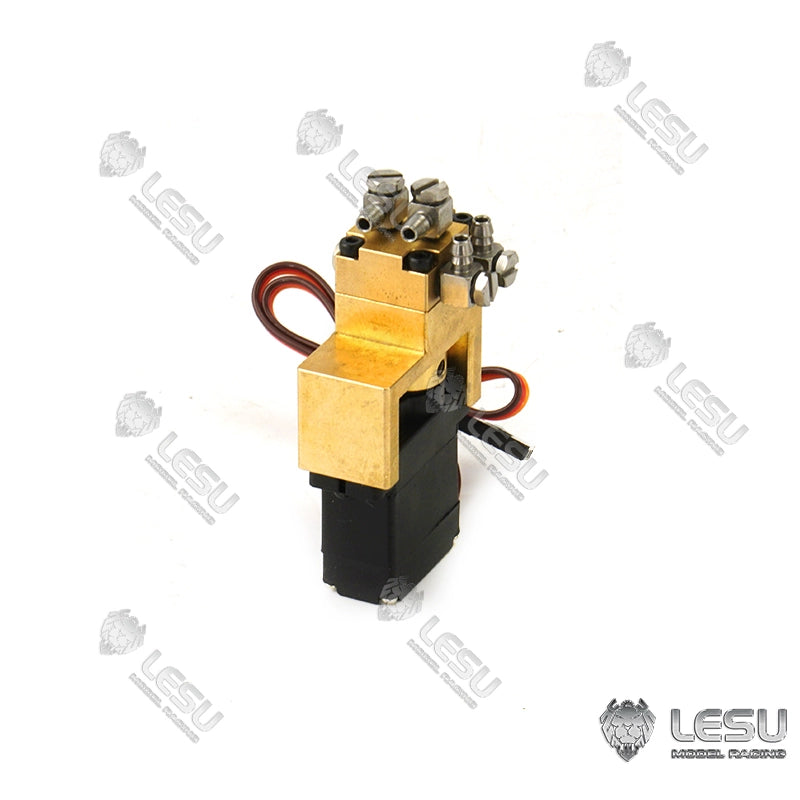

One-way valve:

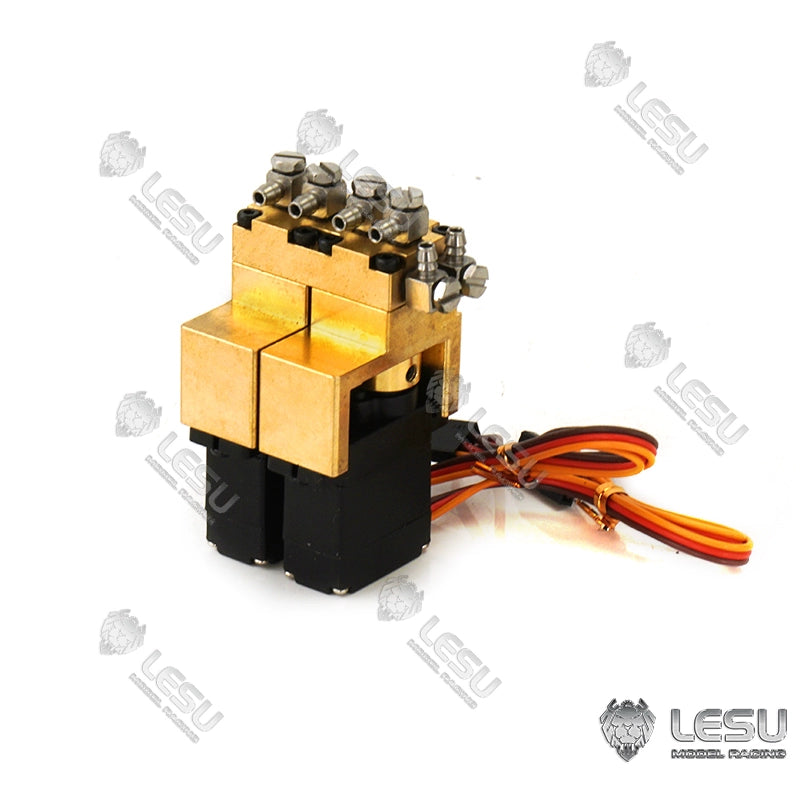

Two-way valve:

Three-way valve:

Four-way valve:

Five-way valve:

Six-way valve:

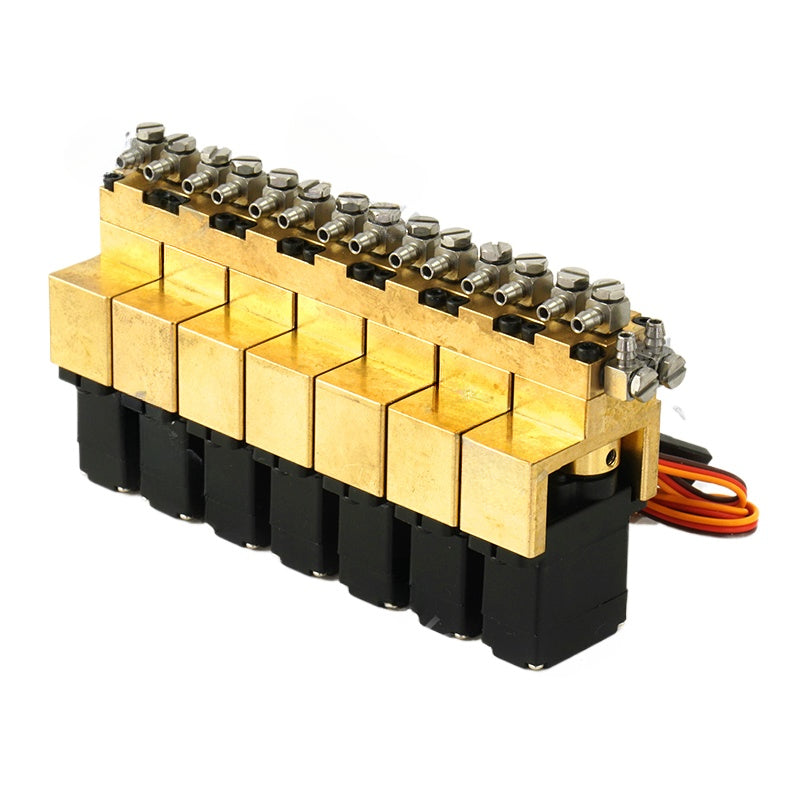

Seven-way valve:
