NGH GT17 17CC GT17-Pro Two Stroke Single Cylinder Petrol Engine for RC Model Airplane

NGH GT17 17CC GT17-Pro Two Stroke Single Cylinder Petrol Engine for RC Model Airplane

$355.00 USD
$390.00 USD $355.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
This is the GT17 17cc (1.03cu) Gas engine from NGH. Well suited to .90 sized glow models, this engine offers light weight and fantastic power output for it's size; 1.8hp @ 12,000rpm.

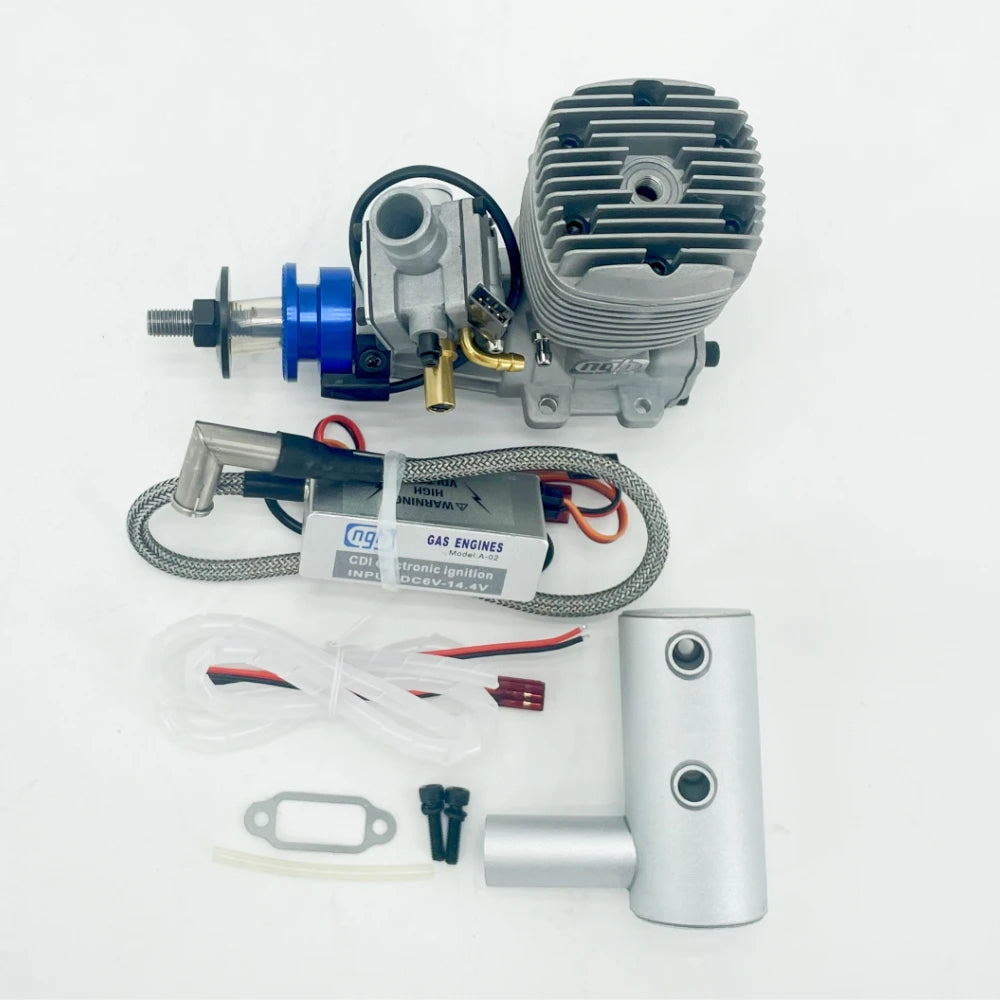

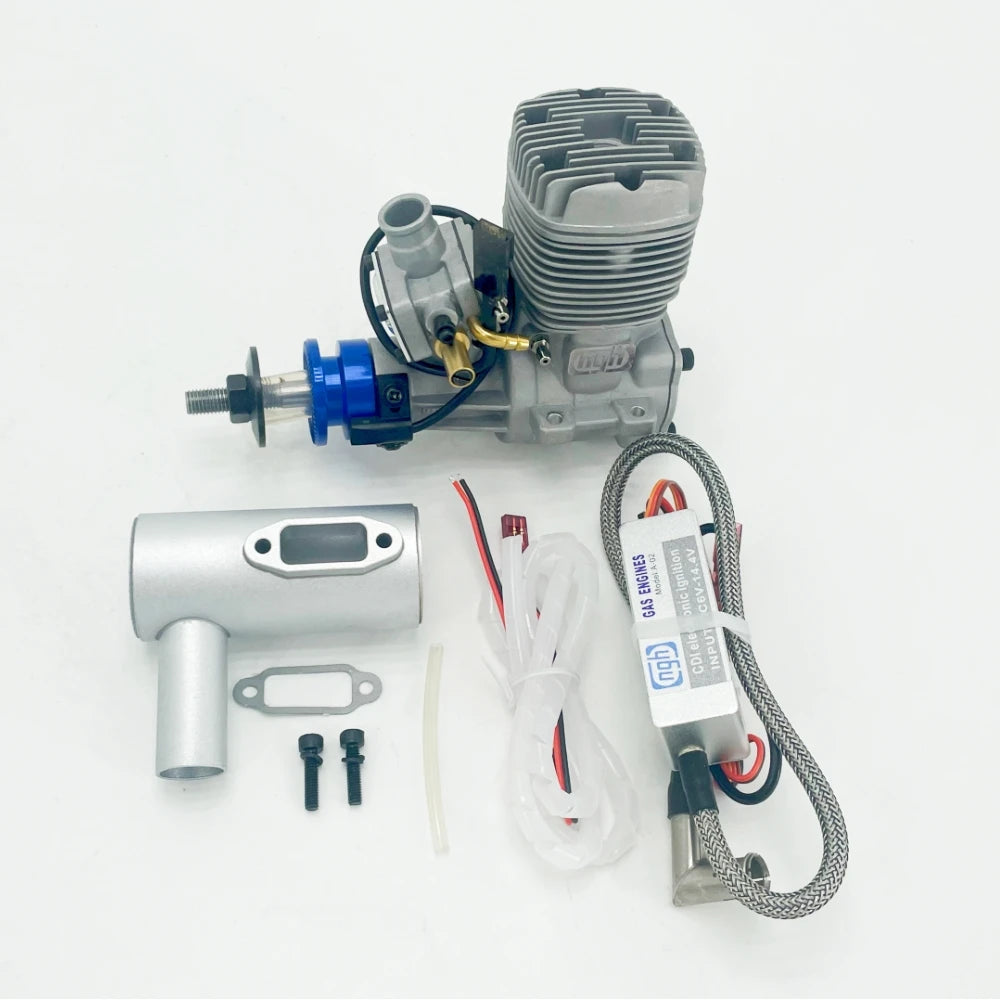

This is a good quality gas engine and comes complete with the reliability of a RCEXL CDI ignition system. Full installation and run-in instructions are also included. The GT17 is not only a great little performer, it looks great too! Featuring a sand cast crank case, contrasting blue anodized prop driver and a Walbro carburetor for easy tuning.
This package is economical to run in comparison to similar sized glow engines. Get some gas engine economy for your model today!

NOTE: Do not run with less than the manufacturers recommended fuel:oil ratio!

Features:
• Electronic ignition system included
• Walbro carburetor
• Beam type mounting for easy glow engine replacement
• Compact muffler

Specs:

  • Engine type: Single cylinder, 2-stroke, air-cooled

  • Bore/Stroke: 29 x 25.6

  • Piston displacement: 16.91cc

  • Max. power: 1.8HP/12,000rpm

  • Min. idle Rpm: 1800rpm

  • Practical RPM: 1800-12000rpm

  • Ignition: Rcexl CDI with auto advance

  • Spark plug: 1/4 x 32 Rcexl

  • Carburetor: Walbro WT series

  • Lubrication oil: 2 cycle Engine Oil API TC / JASO FD or better specs. (Mobil + M2T)

  • General use fuel: 20:1~25:1

  • Propellor range: 13x8 ~ 15x8

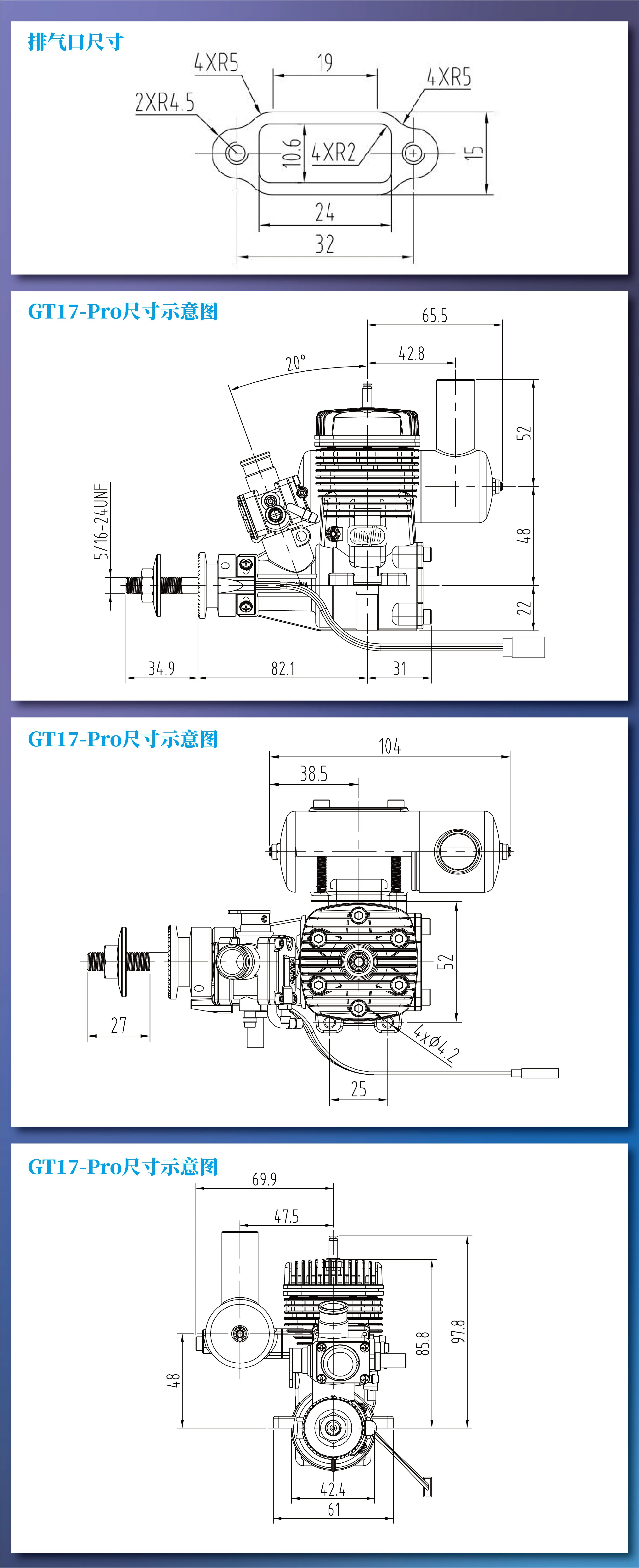

  • Dimensions/Weight:

  • Length backplate to propeller boss: 103.1mm

  • Mounting: 52mm x 25mm

  • Height from crank centreline to spark plug tip: 100mm

  • Weight: 850g (including ignition and muffler)
